Hood Lift: Replacement

Information

When removing and installing the hood lifter, an assistant is necessary.
When removing the hood lifter, remove the lower part first and then the upper part.

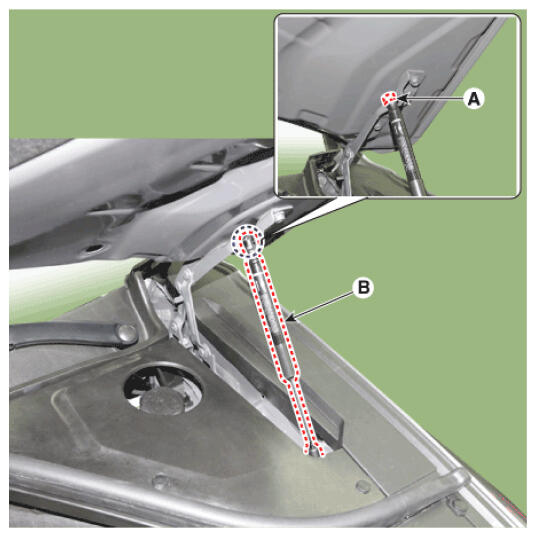

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter and remove the hood lifter (B).

Courtesy of HYUNDAI MOTOR AMERICA
Push the socket of the lifter into the bracket for installation.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
