Hood Latch: Replacement

Remove the front bumper assembly.
(Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

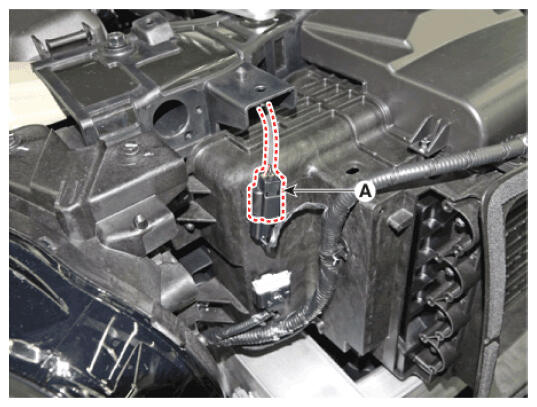

Disconnect the hood latch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

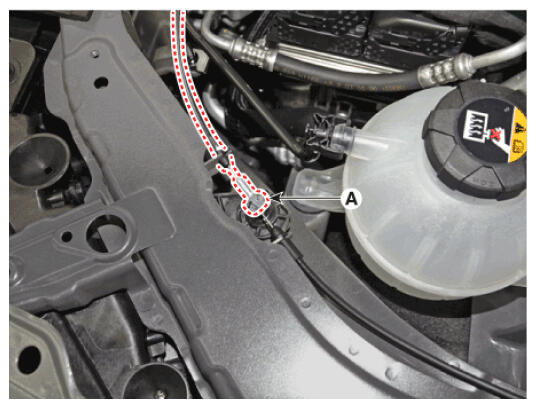

Separate the hood latch release handle cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

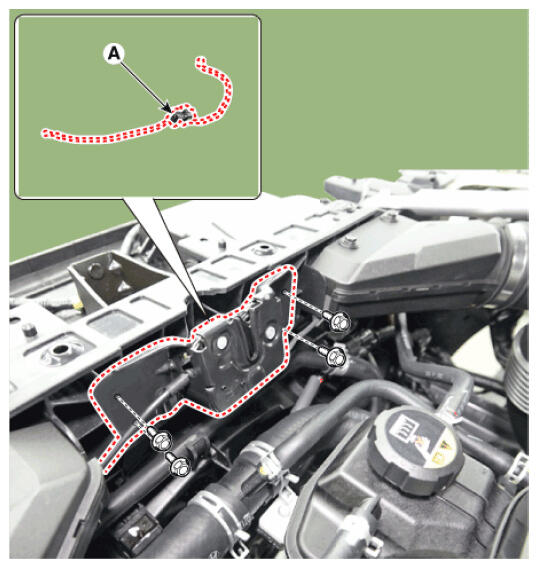

Loosen the mounting bolts, remove the hood latch (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
