Hood Latch Release Handle: Replacement

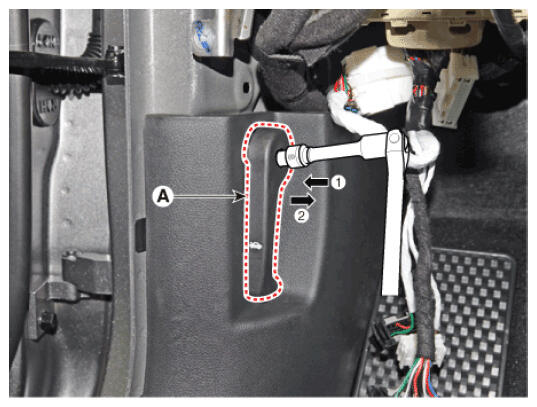

  1. Using a socket, remove the hood release handle (A).
    G16855101Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks/unlocks and opens/closes properly.
