Hood Insulator Pad: Replacement

NOTE:
  • Be careful not to scratch the hood panel.

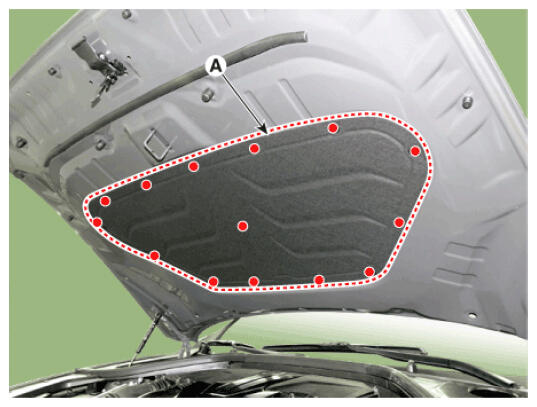

  1. Separate the mounting clips, remove the hood insulator pad (A).
    G16855097Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855098Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
