Hood Assembly: Replacement

Information

• Removing or installing the hood requires an assistant.

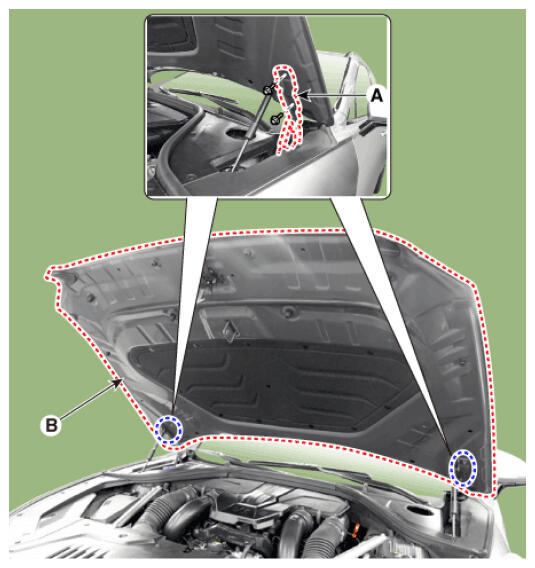

1. After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

   Tightening torque:

   18.6 - 25.5 N.m (1.9 - 2.6 kgf.m, 13.7 - 18.8 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

2. To install, reverse removal procedure.

   Information

   • Make sure the hood locks/unlocks and opens/closes properly.
   • Adjust the hood alignment.
