Front Door Window Glass: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front door trim.
Refer to Front Door - "FRONT DOOR TRIM ")

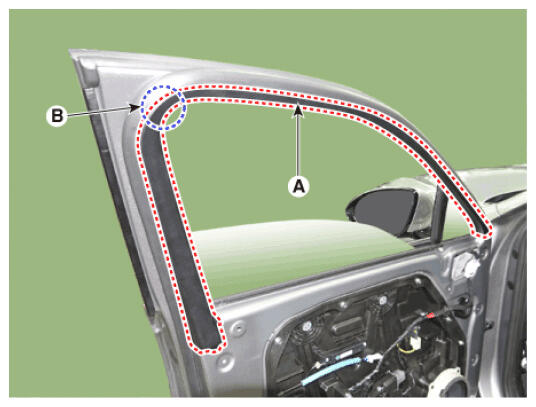

Remove the front door frame inner cover (A).
CAUTION:
- Be careful not to break the corners (B).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door belt outside weatherstrip.
Refer to Front Door - "FRONT DOOR BELT OUTSIDE WEATHERSTRIP ")
Remove the front door belt inside weatherstrip.
Refer to Front Door - "FRONT DOOR BELT INSIDE WEATHERSTRIP ")

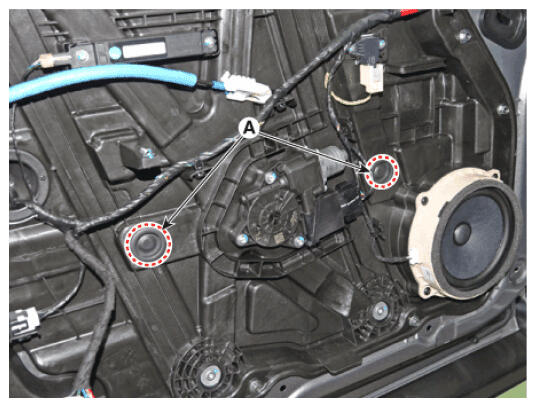

Remove the plug hole (A).

Courtesy of HYUNDAI MOTOR AMERICA
Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.

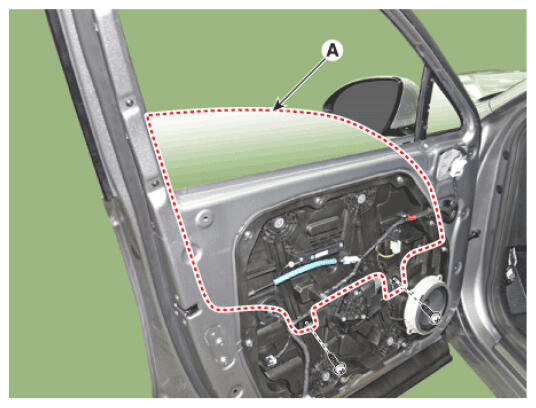

After unscrewing the mounting bolt as loosely as possible and completely loosening the bolt, tilt the front door window glass (A) to pull out it upwards.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door locks and opens properly.
- Replace any damaged clips (or pin-type retainers).
