Front Door Trim: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

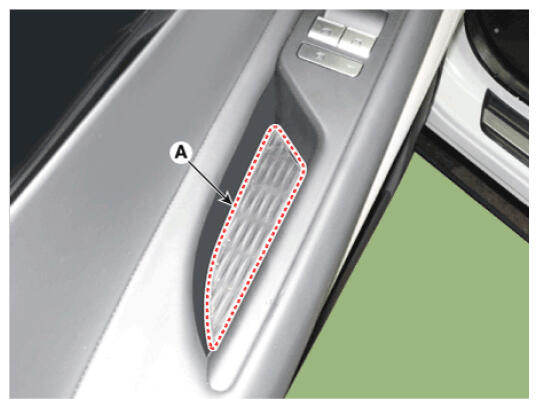

Remove the front door full handle cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

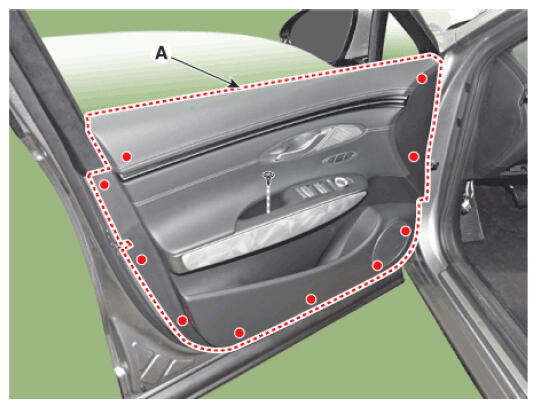

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

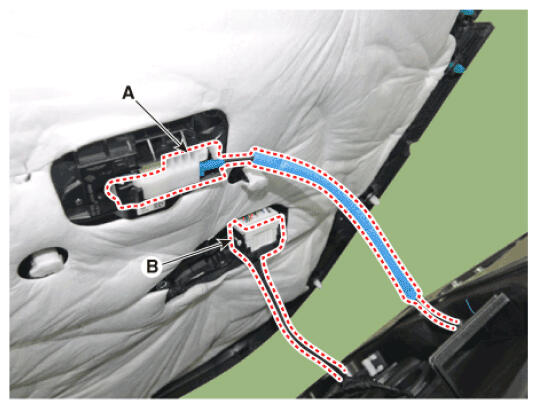

Disconnect the front door inside handle cage (A) and front door connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse the removal procedure.

Information

Be sure to replace the clip (fastener) when re-installing after detaching the door trim.

* In case of non-exchange, watertightness/exit problems may occur

Water tightness prevention
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips (or pin-type retainers).
Make sure the glass is operated properly.
