Front Door Outside Handle: Replacement

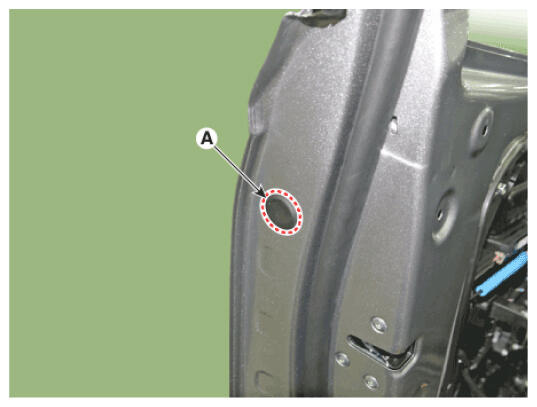

  1. Remove the plug hole (A), loosen the mounting bolt (B) and then remove the front door outside handle (C).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G16855168Courtesy of HYUNDAI MOTOR AMERICA

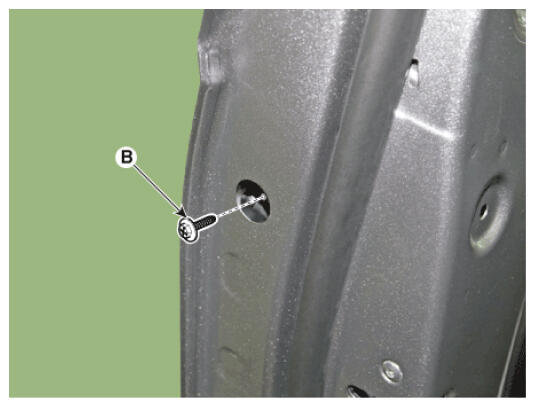

    G16855169Courtesy of HYUNDAI MOTOR AMERICA

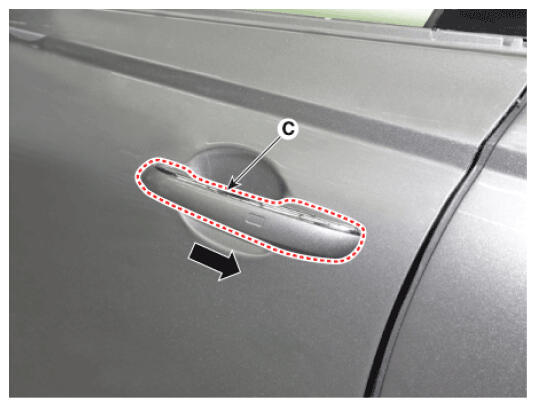

    G16855170Courtesy of HYUNDAI MOTOR AMERICA

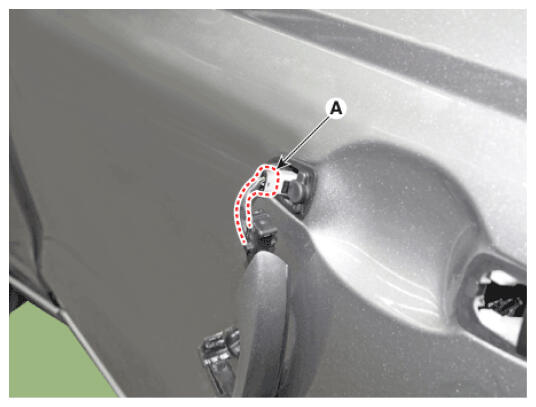

  2. Disconnect the front door outside handle connector (A).
    G16855171Courtesy of HYUNDAI MOTOR AMERICA

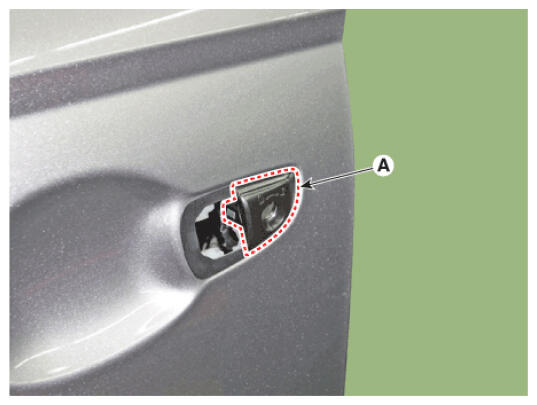

  3. Remove the front door lock assembly (A).
    G16855172Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse removal procedure.

    Information

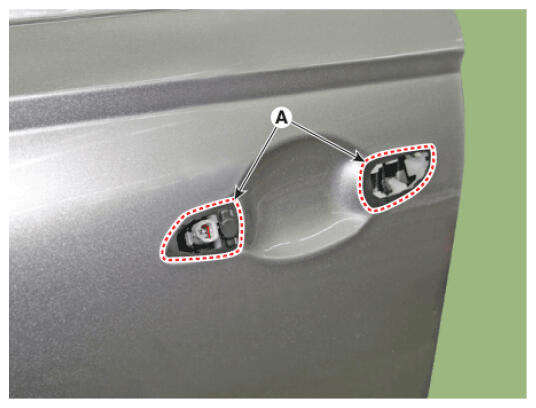

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
      G16855173Courtesy of HYUNDAI MOTOR AMERICA
    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.
