Front Door Module: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front door window glass.
Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

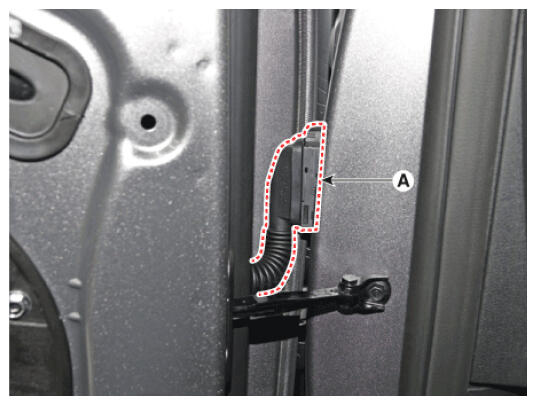

Disconnect the front door main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

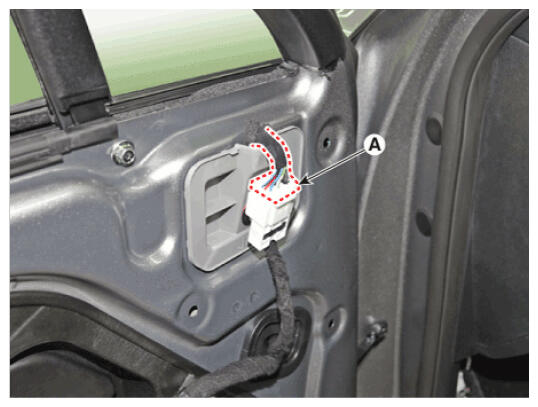

Disconnect the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

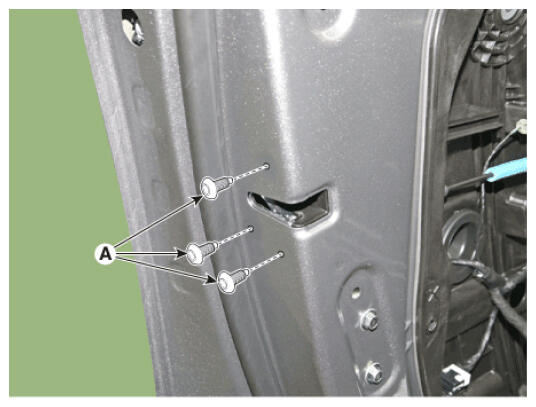

Loosen the front door latch screws (A).
Tightening torque:

7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

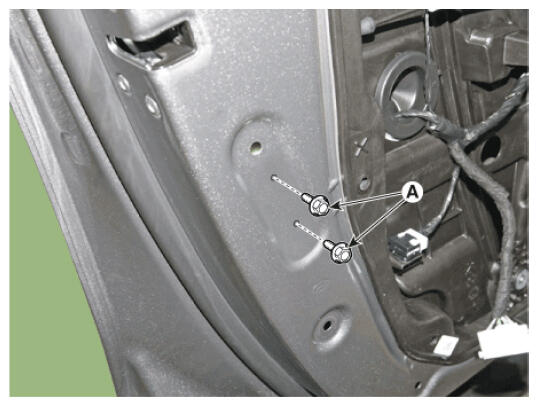

Loosen the front door channel mounting bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

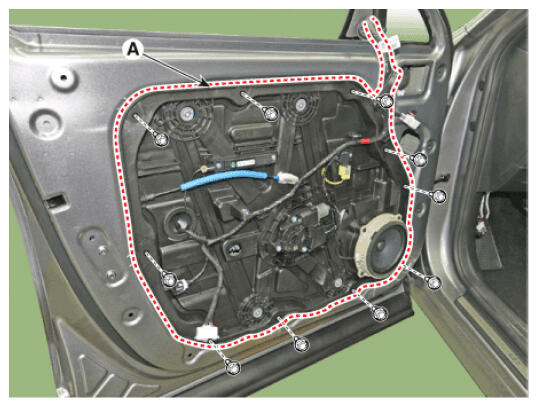

Loosen the mounting bolts, remove the front door module (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

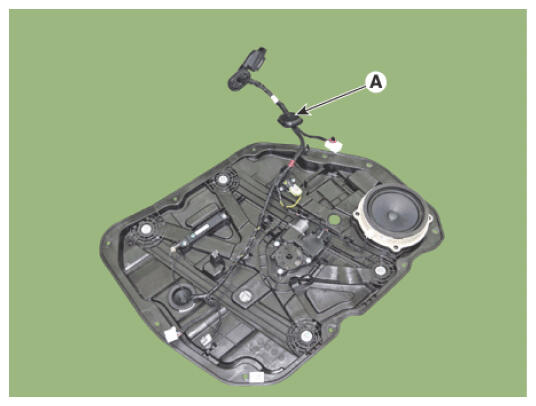

Disconnect the various connector from the front door module and separate the front door module wiring harness (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door latch assembly.
Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reverse removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
