Front Door Latch: Replacement

Remove the front door module.
Refer to Front Door - "FRONT DOOR MODULE ")

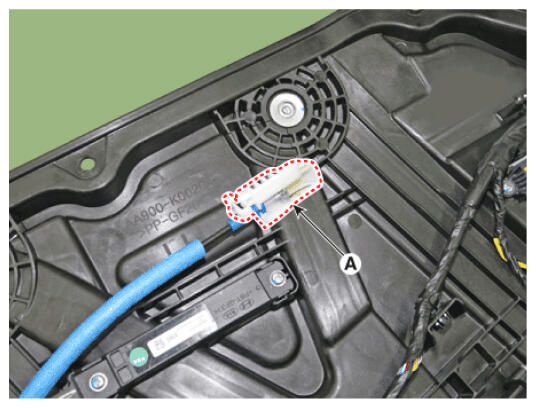

Remove the front door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA

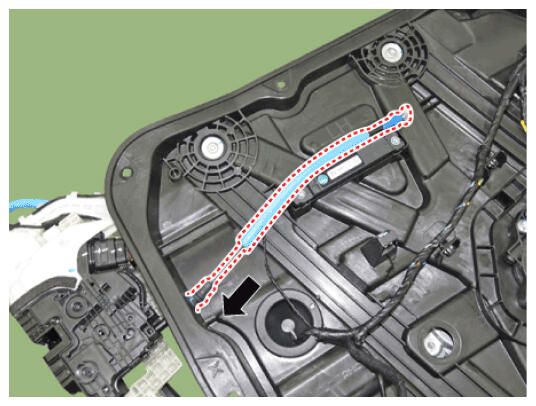

Remove the front door inside handle cable (A) by pushing it in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

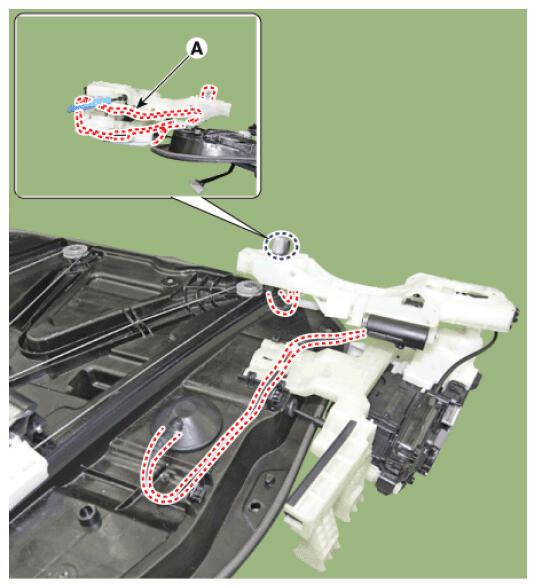

Separate the front door outside handle base connector and wiring harness (A).

Courtesy of HYUNDAI MOTOR AMERICA

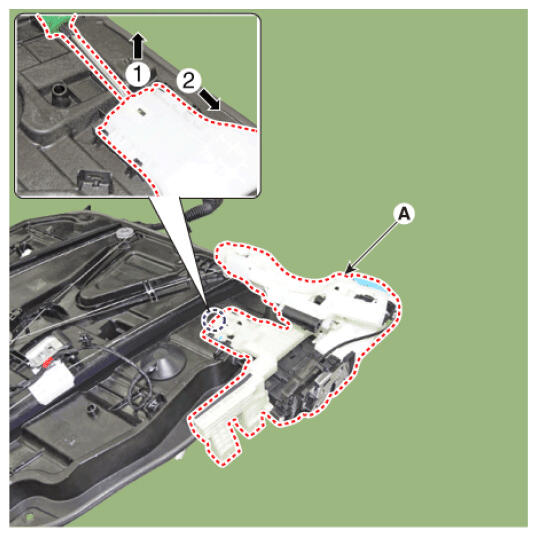

Remove the front door latch (A).

Courtesy of HYUNDAI MOTOR AMERICA

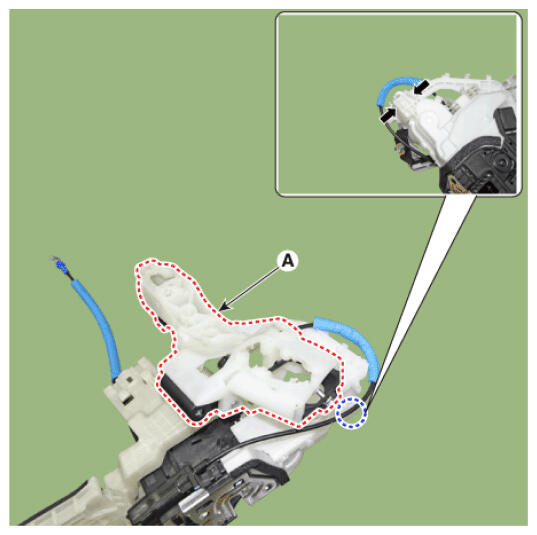

Press the lock pin, remove the front door outside handle base bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

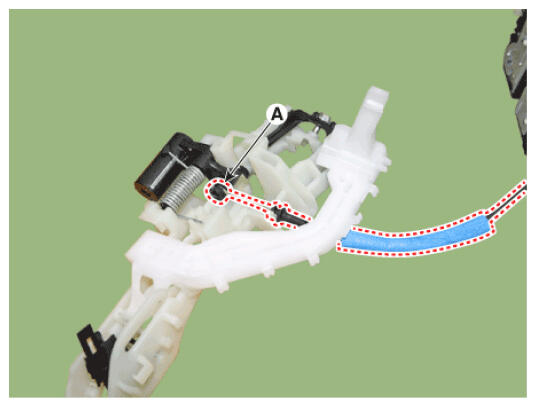

Separate the front door latch cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

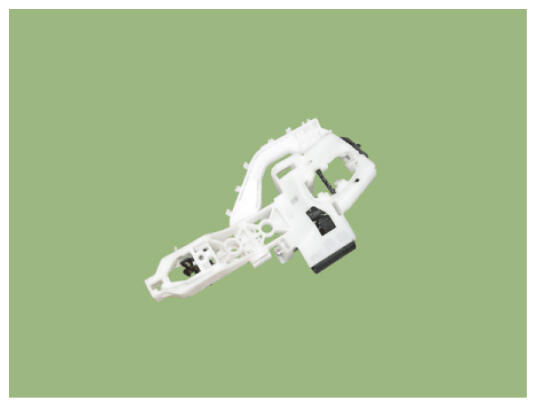

Front door outside handle base bracket

Courtesy of HYUNDAI MOTOR AMERICA

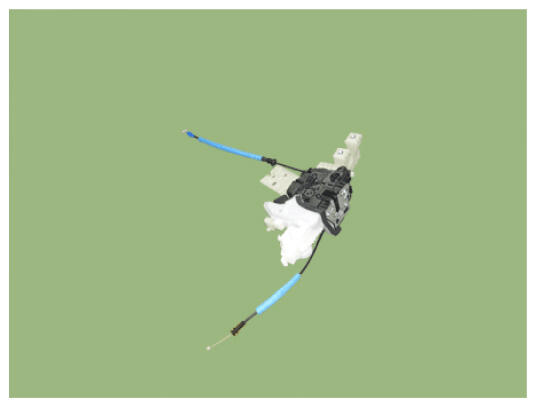

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
