Front Door Frame Garnish: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Be careful not to scratch the door trim and other parts.
- Remove the front door belt outside weatherstrip.
(Refer to Front Door - "FRONT DOOR OUTSIDE WEATHERSTRIP ")
- Remove the front door trim.
Refer to Front Door - "FRONT DOOR TRIM ")

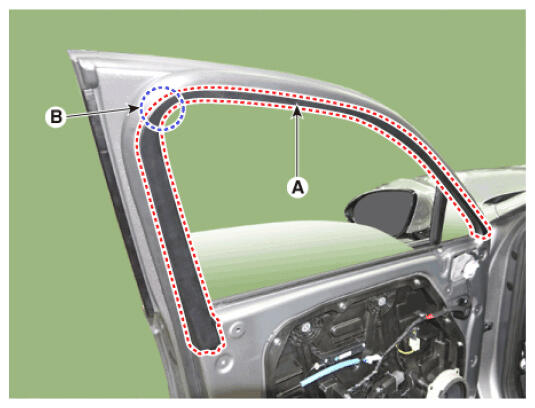

- Remove the front door frame inner cover (A).CAUTION:
- Be careful not to break the corners (B).

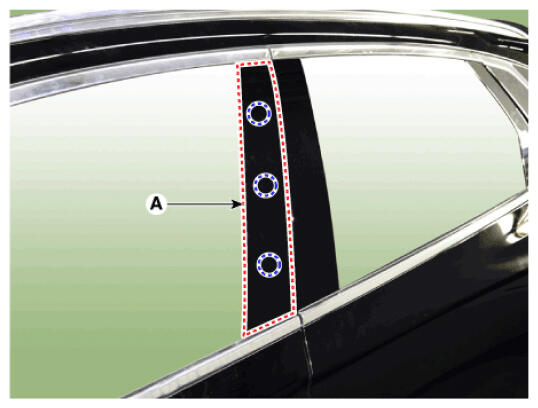

- Loosen the mounting screws and remove the front door frame garnish (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- If any parts are damaged after removing the door frame garnish, replace it with a new one.
