Front Door Belt Inside Weatherstrip: Replacement

  1. Remove the front door trim.

    Refer to Front Door - "FRONT DOOR TRIM ")

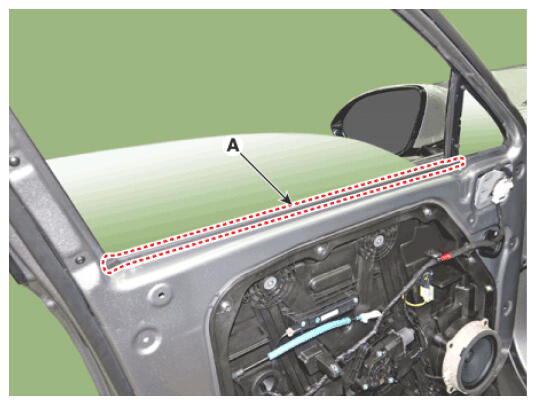

  2. Remove the front door belt inside weatherstrip (A).
    G16855175Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
NOTE:
  • When installing, install it by first contacting the inside part.
