Glass Adjustment

Information

• Check the glass run channel for damage or deterioration, and replace it if necessary.

1. Remove the front door trim.

   Refer to Front Door - "FRONT DOOR TRIM ")

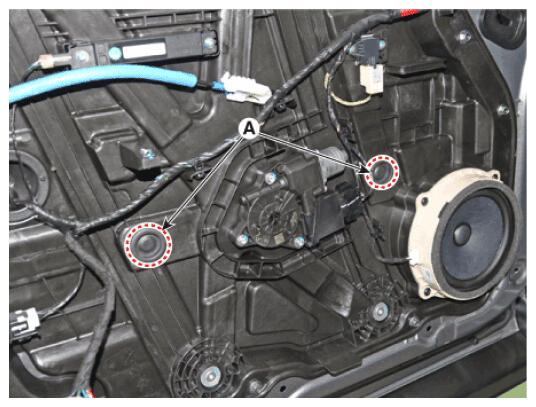

2. Remove the plug hole (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
   CAUTION:

   • Be careful not to drop the glass and/or scratch the glass surface.

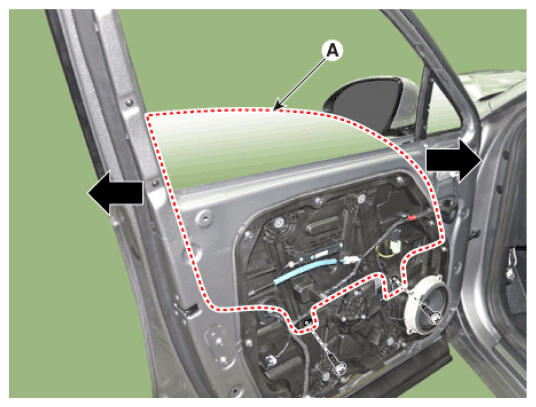

4. After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Check the glass for normal operation.
