Radiator Grille: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the bumper cover and panels.
- Remove the front bumper assembly.
Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

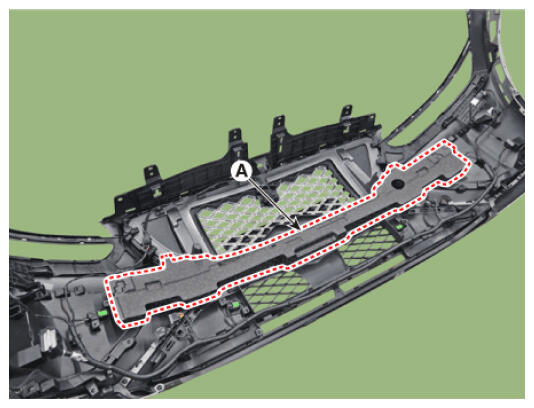

- Remove the front bumper energy absorber (A).

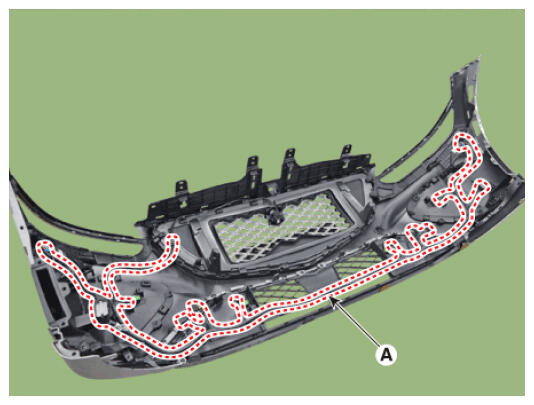

- Detach the wiring (A) mounted on the front bumper assembly and radiator grille.
- Remove the SVM front camera.
(Refer to Advanced Driver Assistance System (ADAS) - "SURROUND VIEW MONITOR (SVM) CAMERA ")

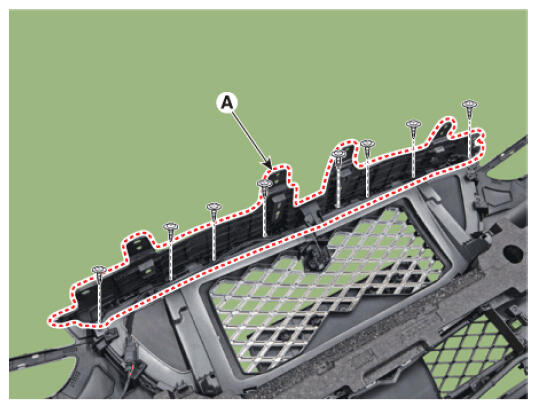

- Loosen the mounting screws, remove the radiator grille upper cover (A).

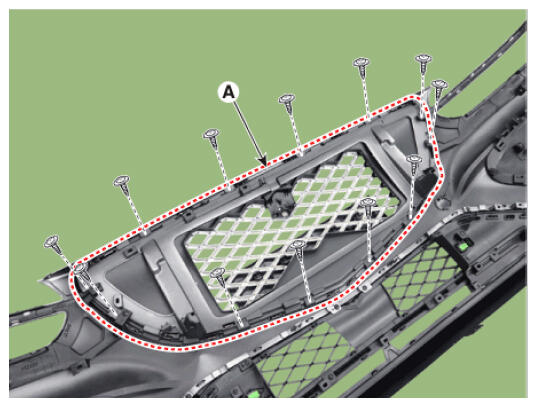

- Loosen the mounting screws, remove the radiator grille (A).
- To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
