Front Bumper Assembly: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Remove the fender garnish.
(Refer to Body Side Molding - "FENDER GARNISH ")

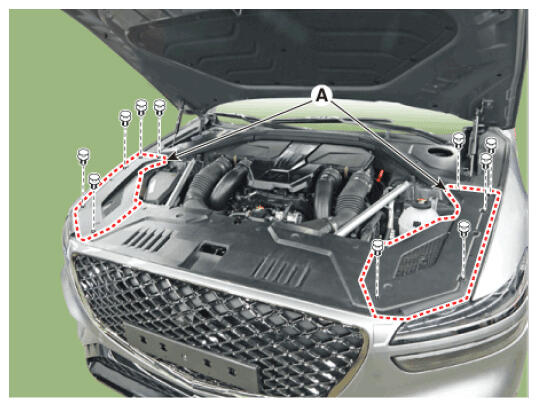

Loosen the mounting clips, remove the engine room side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

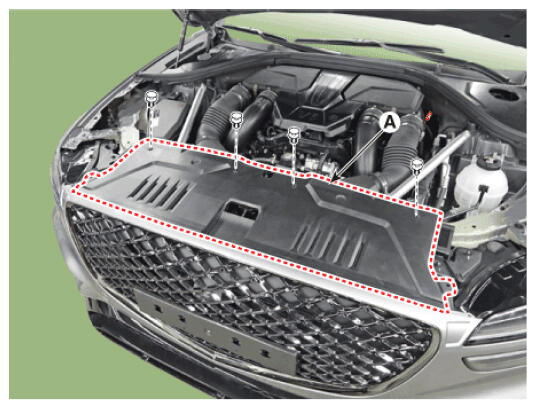

Loosen the mounting clips, remove the front bumper upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

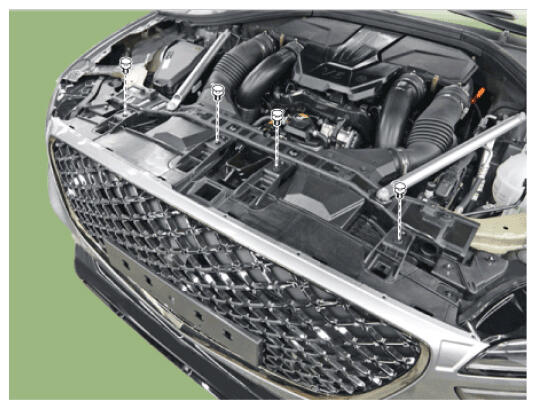

Loosen the front bumper mounting clips.
[Upper]

Courtesy of HYUNDAI MOTOR AMERICA

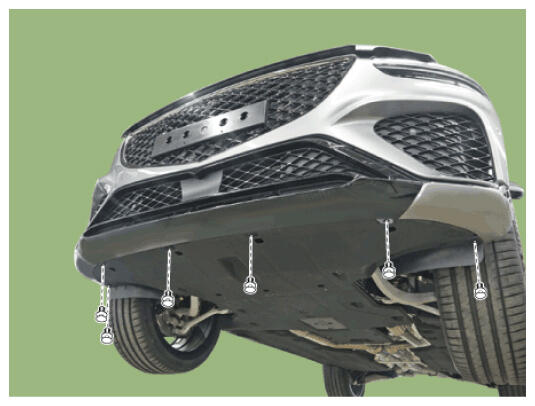

[Lower]

Courtesy of HYUNDAI MOTOR AMERICA

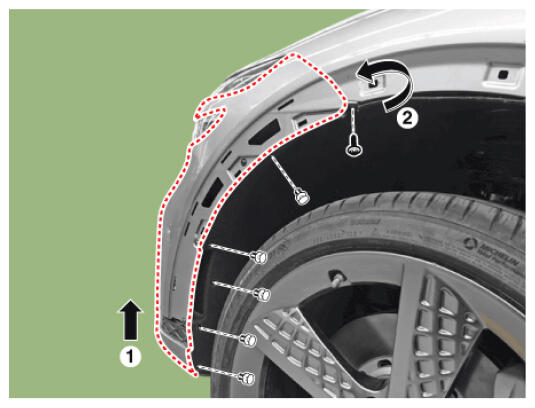

Loosen the mounting clip and screws on the side of front bumper (A), detach the side part of front bumper.
NOTE:
- When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.
Courtesy of HYUNDAI MOTOR AMERICA

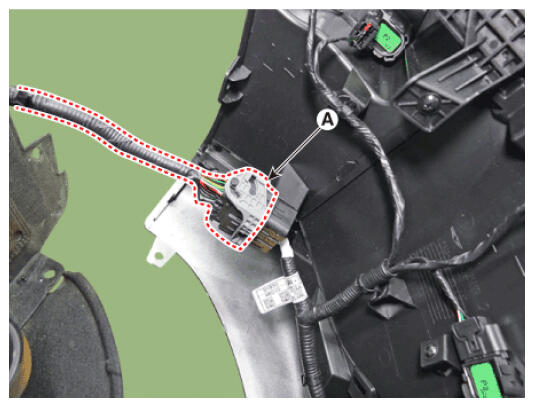

Disconnect the front bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

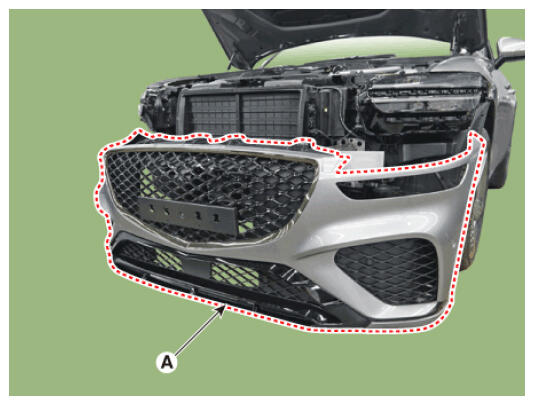

Remove the front bumper assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
