Antenna Actuation Diagnosis
- Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

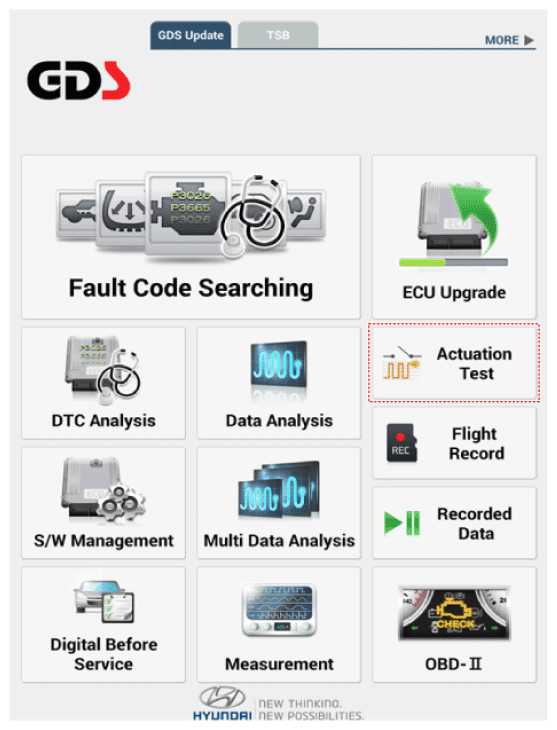

- Select the 'Actuation Test' and 'Car model'.
- Set the smart key near the related antenna and operate it with a Diagnostic tool.
- Set the smart key near the related antenna and operate it with a Diagnostic tool.
- If the LED of smart key is blinking, the smart key is normal.
- If the LED of smart key is not blinking, check the voltage of smart key battery.
- Antenna actuation
- Interior Antenna 1
- Interior Antenna 2
- Bumper Antenna
- Driver Door Antenna
- Assist Door Antenna
