Tailgate Antenna

Disconnect the negative (-) battery terminal.

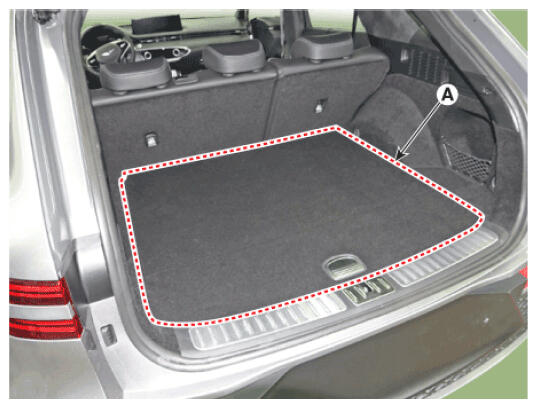

Remove the luggage board (A).

Courtesy of HYUNDAI MOTOR AMERICA

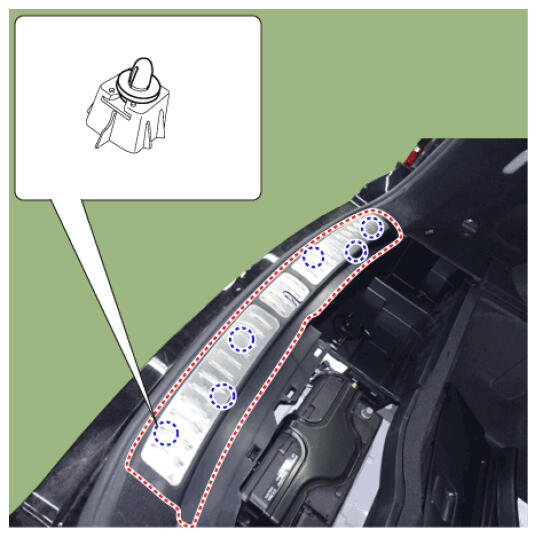

Remove the rear transverse trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

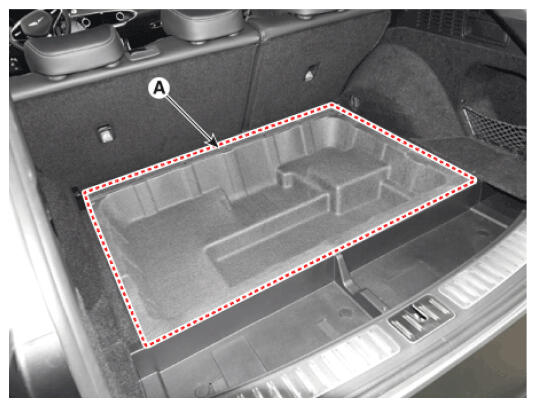

Remove the luggage tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

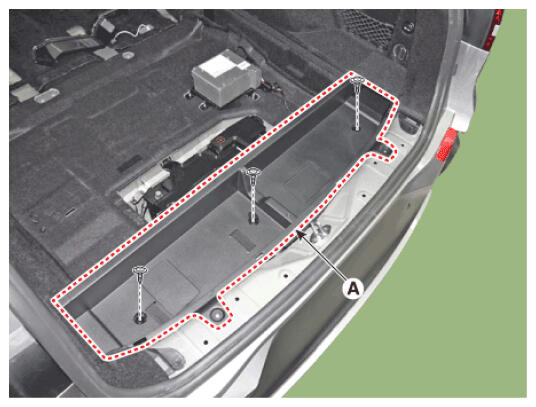

Remove the floor box trim (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

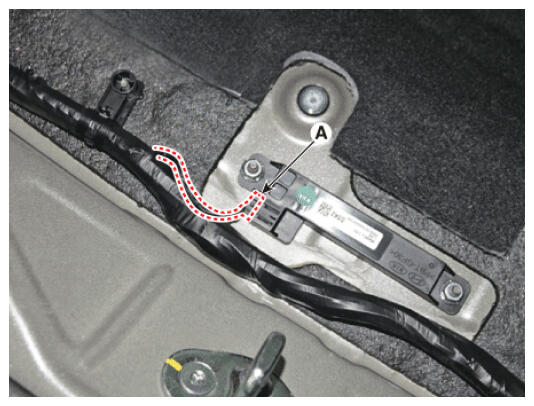

Disconnect the tailgate antenna connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

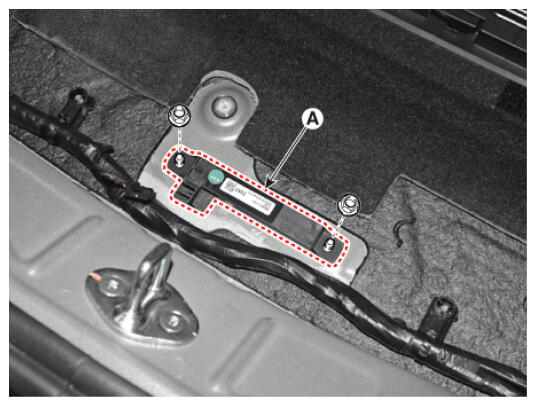

Remove the tailgate antenna (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA
