Front Antenna

Disconnect the negative (-) battery terminal.
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

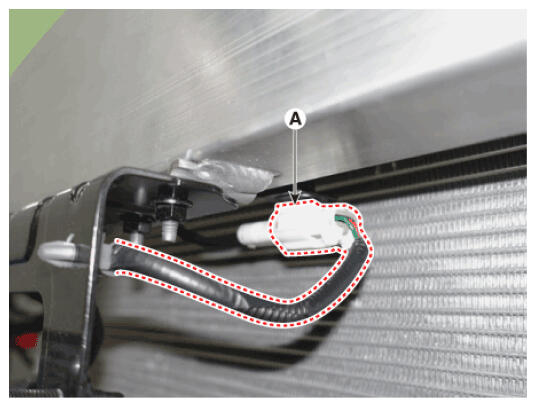

Disconnect the front antenna connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

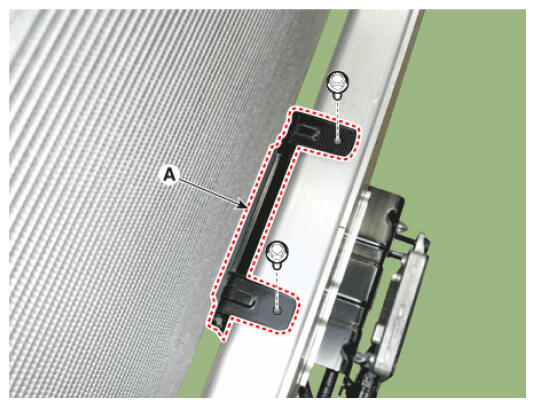

Remove the front antenna (A) after loosening mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA
