Integrated Rain Sensor

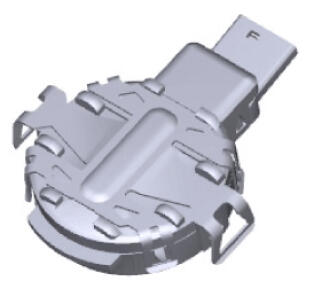

Integrated rain sensor (A) controls three systems: front wiper, auto-light, and central air conditioner.
- Wiper Control System
When "AUTO" switch signal is received from the multi-function switch on the right, the integrated rain sensor detects the amount of rainfall. The sensor is installed inside the upper part of the front window for wiper motor control.
This system automatically controls the operation duration and speed of the wiper depending on the measured amount of rainfall even if the driver does not operate the wiper switch.
