Front Wiper Motor: Removal
- Disconnect the negative (-) battery terminal.

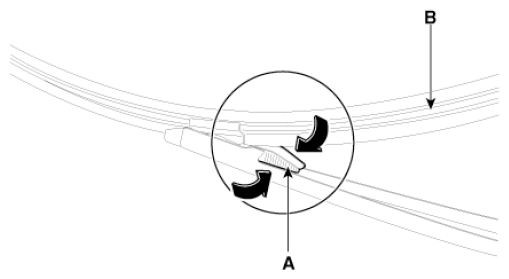

- If necessary, release the wiper blade fixing clip (A) by pulling up and remove the wiper blade (B) from the inside radius of wiper arm.
- Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

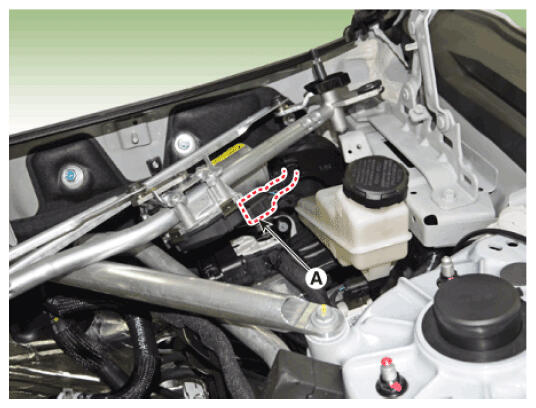

- Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.

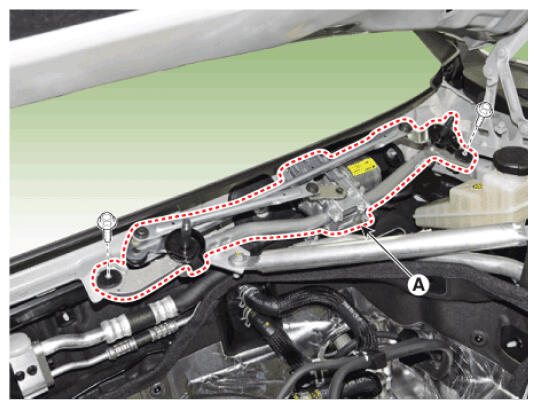

- Remove the windshield wiper motor and linkage assembly (A) after removing 2 bolts.

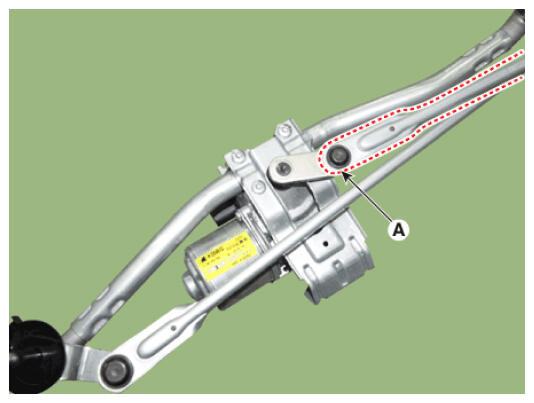

- remove the lower linkage (A) from the wiper motor crank arm

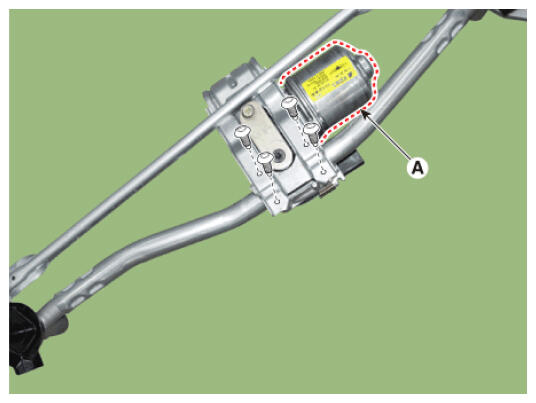

- Remove the wiper after loosening bolts.
