Removal and Installation: Removal
- Disconnect the negative (-) battery terminal.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Remove the front right wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

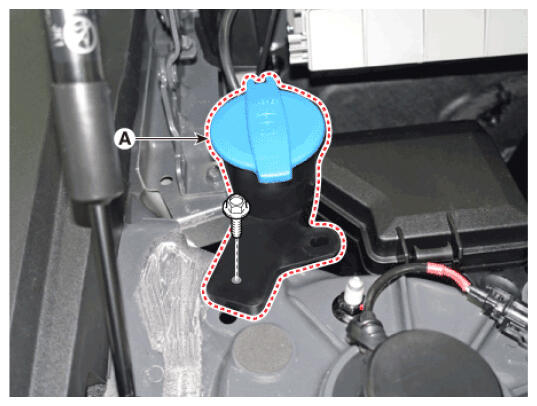

- Loosen the mounting bolt, remove the reservoir washer inlet (A).

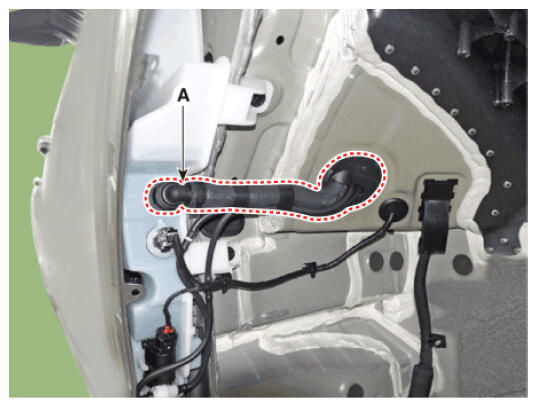

- Separate the hose (A), remove the washer hose assembly.

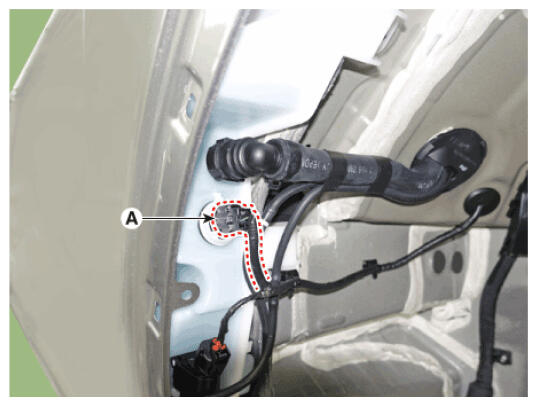

- Disconnect washer level sensor connector (A).

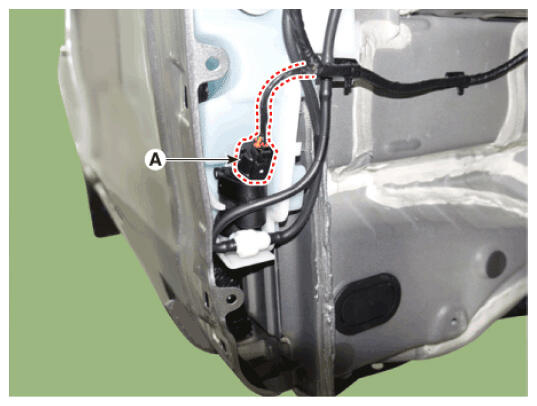

- Disconnect the washer motor connector (A).

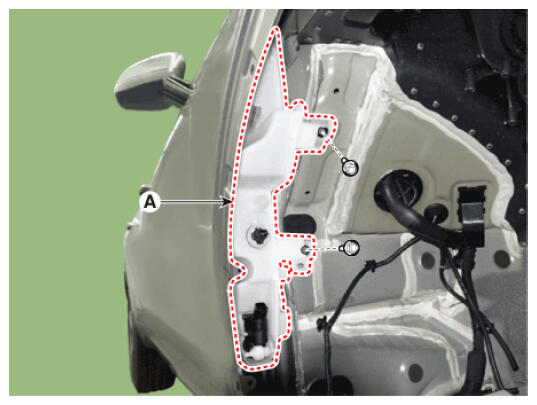

- Loosen mounting bolts, remove the washer reservoir tank (A).

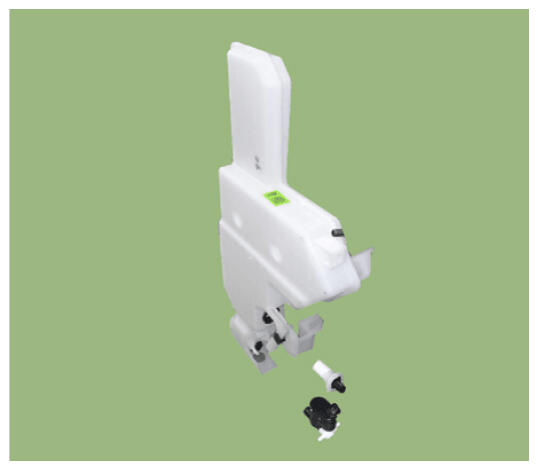

- If necessary, remove the washer motor and washer lever sensor.
