Rear Wiper Motor: Removal

Disconnect the negative (-) battery terminal.

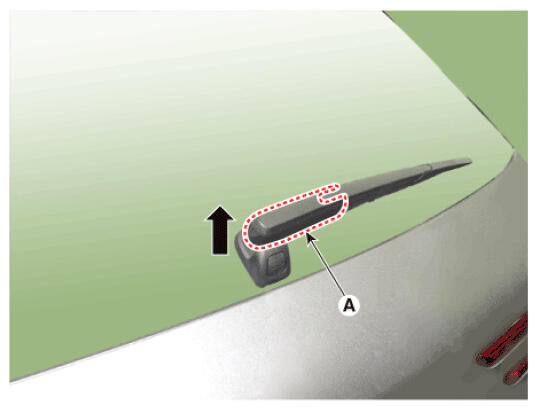

Detach the rear wiper cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

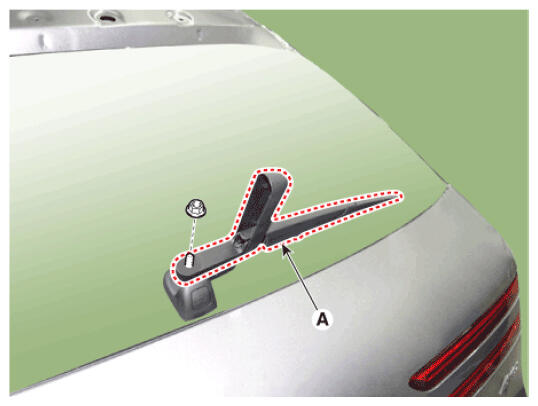

Remove the rear wiper arm & blade (A) after removing rear wiper nut.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the liftgate trim.
(Refer to Body - "LIFTGATE TRIM ")

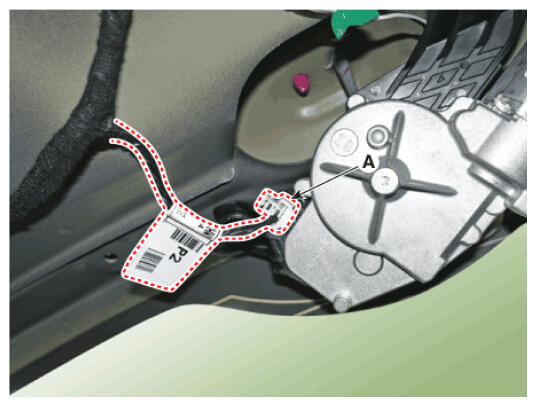

Disconnect the wiper motor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

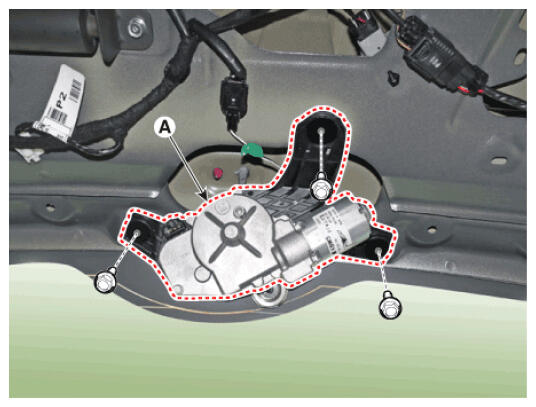

Remove the rear wiper motor assembly (A) after loosening mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA
