Rear Wiper Motor: Installation
- Install the rear wiper motor assembly.
Tightening torque:
6.9 - 10.8 Nm (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb.ft)
- Install the tailgate trim.
- Install the rear wiper arm cap after tightening the nut.
Tightening torque:
8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb.ft)

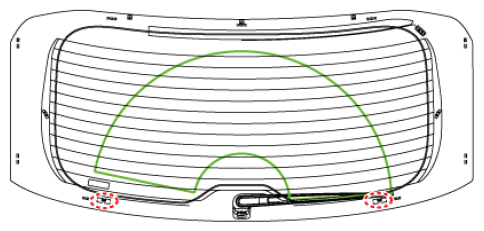

- Set the rear wiper blade and to the lowest defogger heat line and tailgate glass.
