Rear Wiper Motor: Inspection: Notes

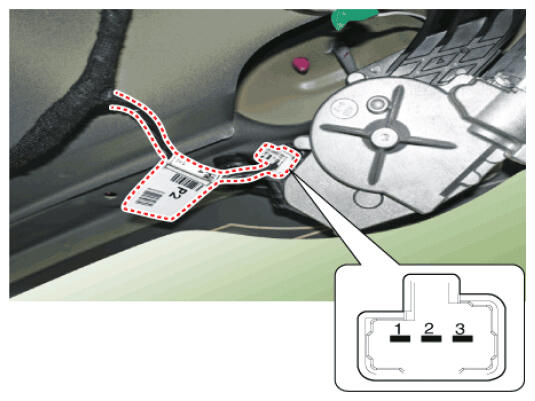

  1. Remove the connector from the rear wiper motor.

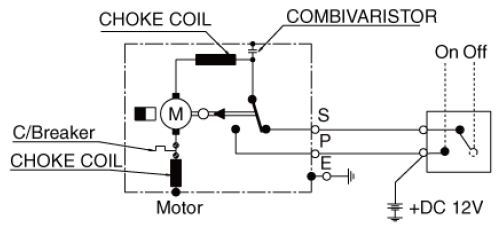

  2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively. Check that the motor operates normally. Replace the motor if it operates abnormally.
    No Description
    1 Low (+)
    2 Ground
    3 Parking
    G16856127Courtesy of HYUNDAI MOTOR AMERICA
    G16856128Courtesy of HYUNDAI MOTOR AMERICA
