Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) AND CLOCK SPRING ")

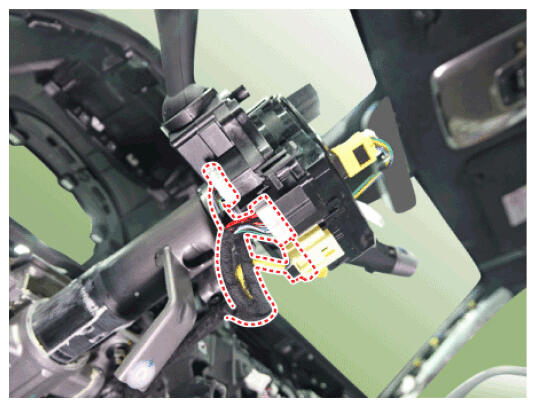

  3. Disconnect the multifunction connector (A).
    G16856143Courtesy of HYUNDAI MOTOR AMERICA

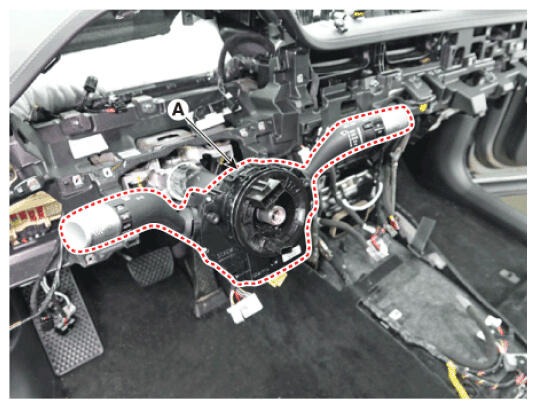

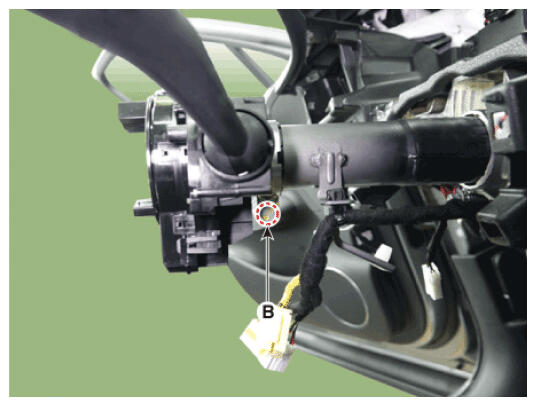

  4. Loosen the clamp screw (B) and then remove the multifunction switch assembly (A).
    G16856144Courtesy of HYUNDAI MOTOR AMERICA
    G16856145Courtesy of HYUNDAI MOTOR AMERICA
