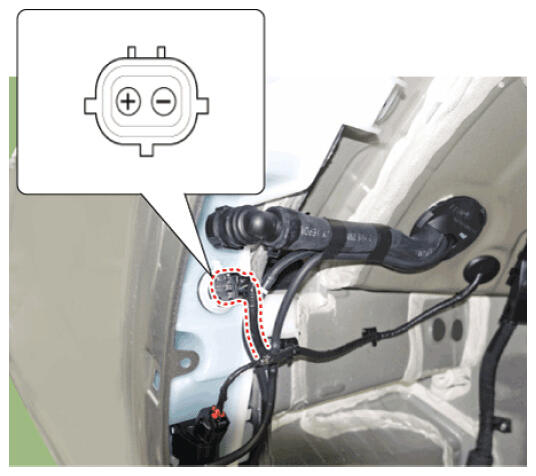

Washer Fluid Level Sensor Switch
- Disconnect the negative (-) battery terminal.
- Drain the washer fluid less than 650 cc.

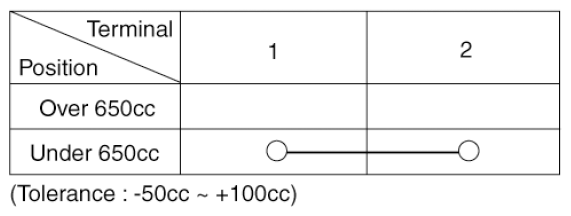

- Check for continuity between the No. 1 and No. 2 terminal in each float position.
There should be continuity when the float is down.
There should be no continuity when the float is up.
- If the continuity is not as specified, replace the washer fluid level switch
