Inspection (With Diagnostic tool)
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system.
The diagnostic system provides the following information.
- Fault Code Searching: Checking failure and code number (DTC)
- Data Analysis: Checking the system input/output data state
- Actuation test: Checking the system operation condition
- S/W Management: Controlling other features including system option setting and zero point adjustment

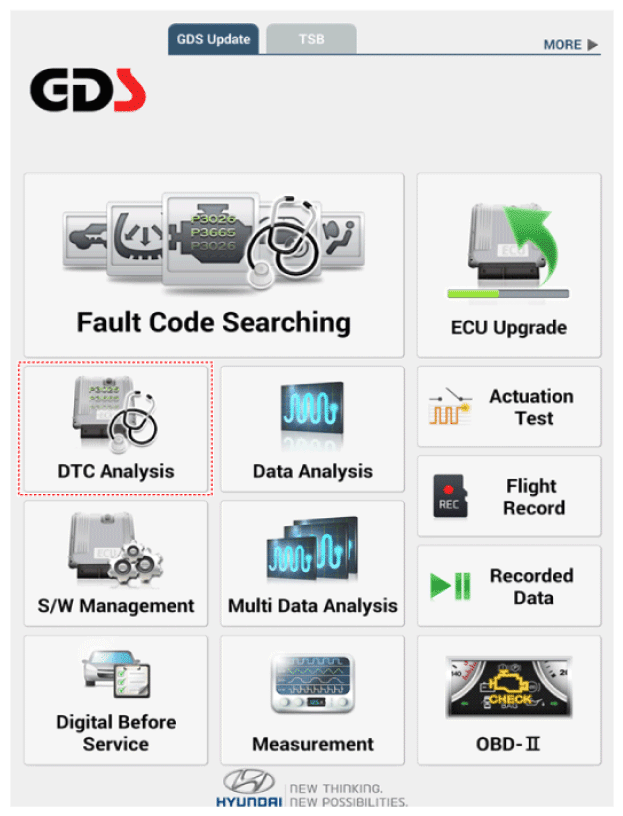

- If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

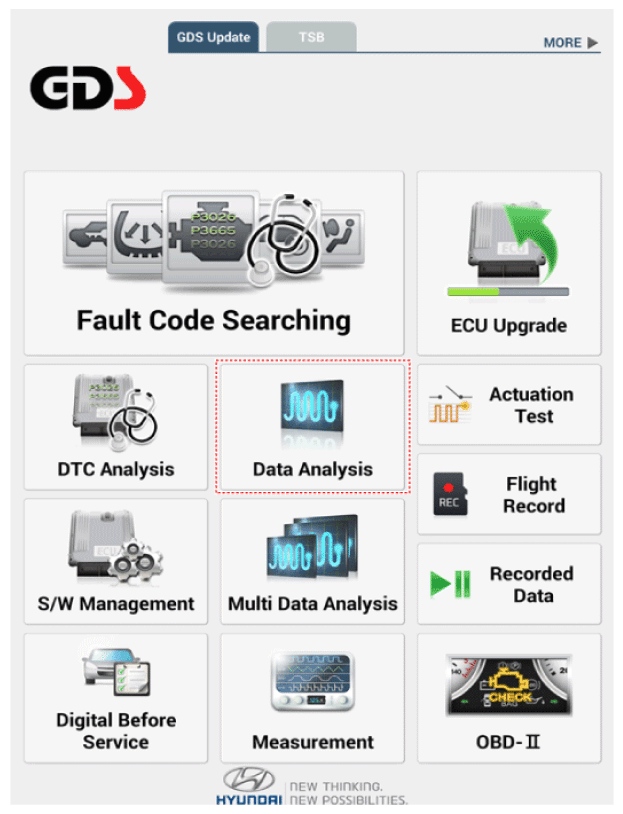

- If check current status, select the "Data Analysis" and "Car model".

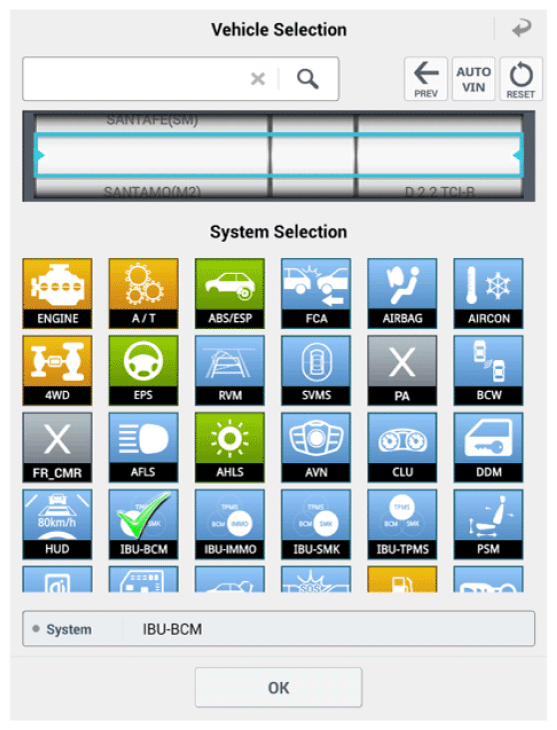

- Select the 'IBU_BCM' to search the current state of the input/output data.
