Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

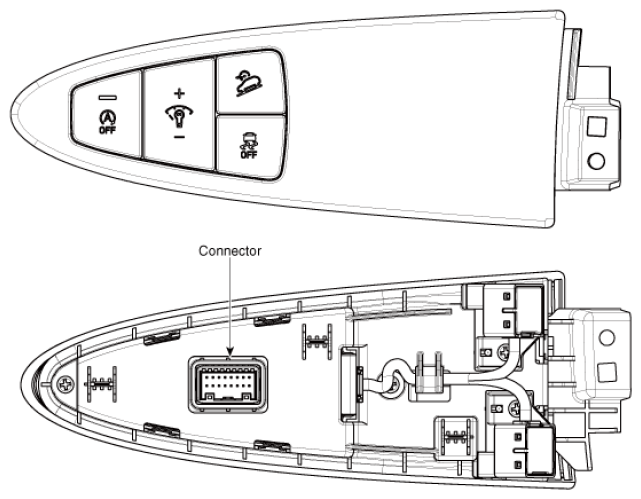

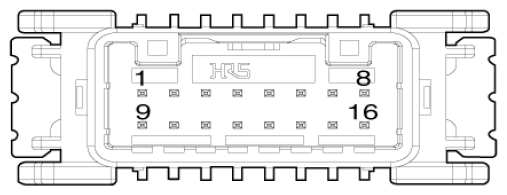

Connector	No	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	IGN 1
	2	Battery (+)
	3	-
	4	DBC
	5	Ground
	6	ISG OFF
	7	ISG IND
	8	Rheostat (Up)
	9	Rheostat (Down)
	10	-
	11	LIN
	12	Illumination (+)
	13	-
	14	Illumination (-)
	15	DETENT
	16	ESC OFF
