Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Using a flat-tip screwdriver or remover, remove the overhead console lamp (A).
    G16856207Courtesy of HYUNDAI MOTOR AMERICA

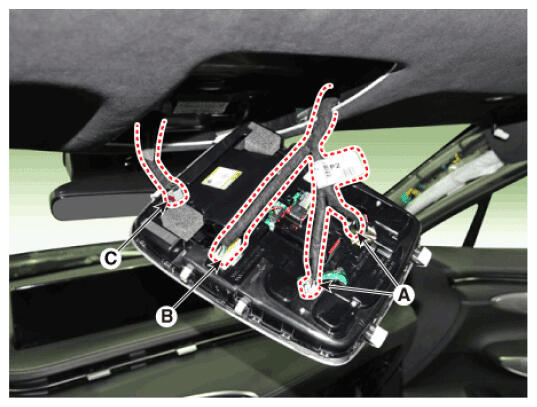

  3. Disconnect the mic connector (A), overhead console connector (B) and antenna connector (C)
    G16856208Courtesy of HYUNDAI MOTOR AMERICA
