Repair and Diagnosis
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Lighting System
>>
Mood Lamp
>>
Connector And Terminal Information
>>
Mood Lamp Control Unit
Mood Lamp Control Unit
Courtesy of HYUNDAI MOTOR AMERICA

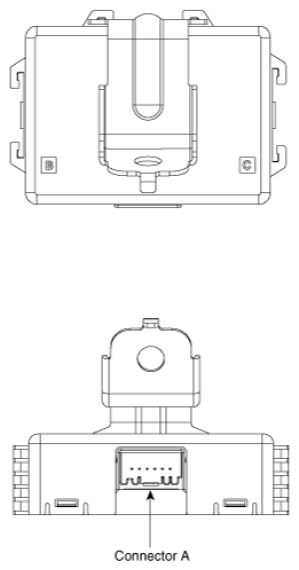

Connector A
No
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
Battery (+)
2
LIN BUS 2
3
LIN BUS 1
4
B-CAN High
5
B-CAN Low
6
Ground
