Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.

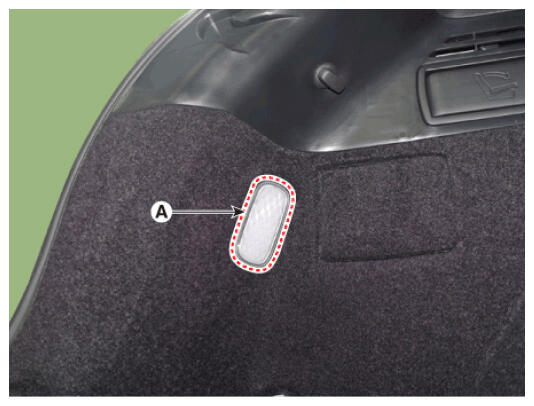

  2. Remove the luggage room lamp (A).
    G16856222Courtesy of HYUNDAI MOTOR AMERICA

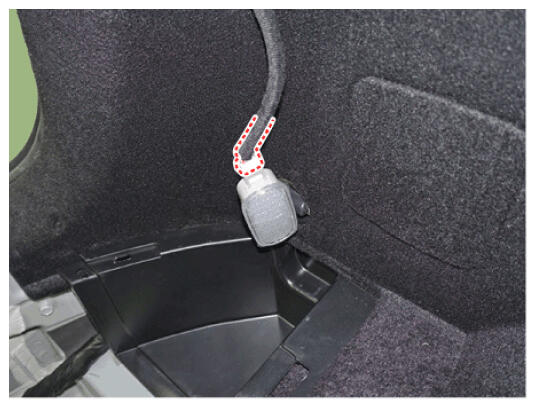

  3. Disconnect the luggage room lamp connector.
    G16856223Courtesy of HYUNDAI MOTOR AMERICA
