Moisture absorbent of the head lamp

NOTE:

After the testing of moisture, replace if necessary.
1. Start the engine, turn on the head lamp and open the dust cover.
2. If there is moisture after 30 minutes, replace the moisture absorbent.

Remove the head lamp assembly.
(Refer to Lighting System - "HEAD LAMP ")

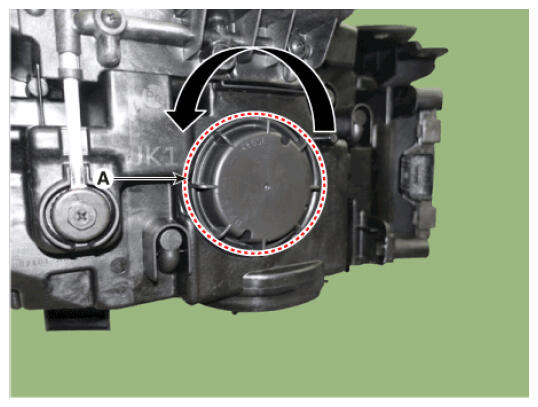

Remove the dust caps (A) after turning in the counterclockwise direction.

Courtesy of HYUNDAI MOTOR AMERICA

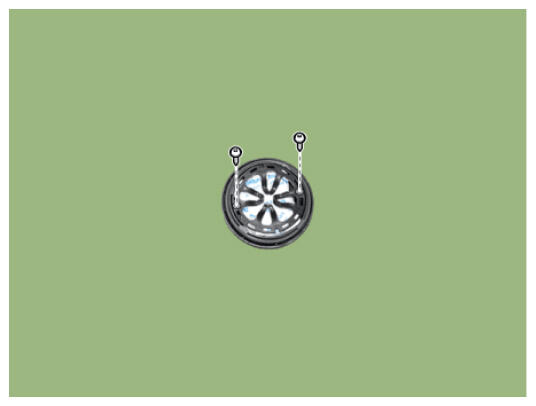

Replace the moisture-absorbing agent after loosening mounting screws.

G16856176

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Grasp the moisture absorbing agent and form a round shape.

Do not insert the moisture-absorbing agent folded.

Correct	Incorrect
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

Be careful to ensure that the moisture-absorbing agent packaging is not damaged when fastening the screws.
