LED Control Unit (ILCU)

  1. Remove the head lamp.

    (Refer to Lighting System - "HEAD LAMP ")

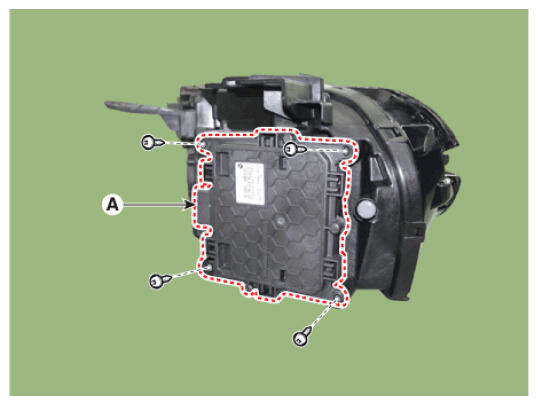

  2. Remove the ILCU (Integrated LED Control Unit) (A).
    G16856170Courtesy of HYUNDAI MOTOR AMERICA

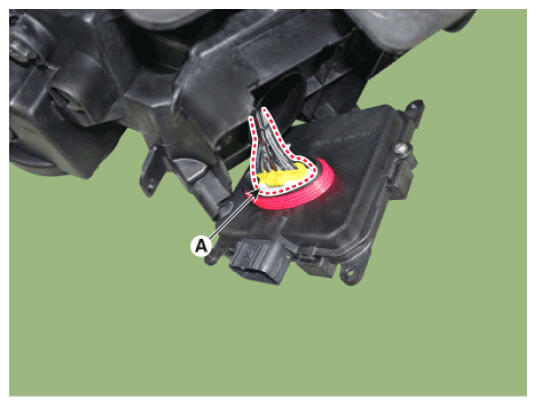

  3. Disconnect the ILCU connector (A).
    G16856171Courtesy of HYUNDAI MOTOR AMERICA
