Head Lamp Aiming Point: Notes

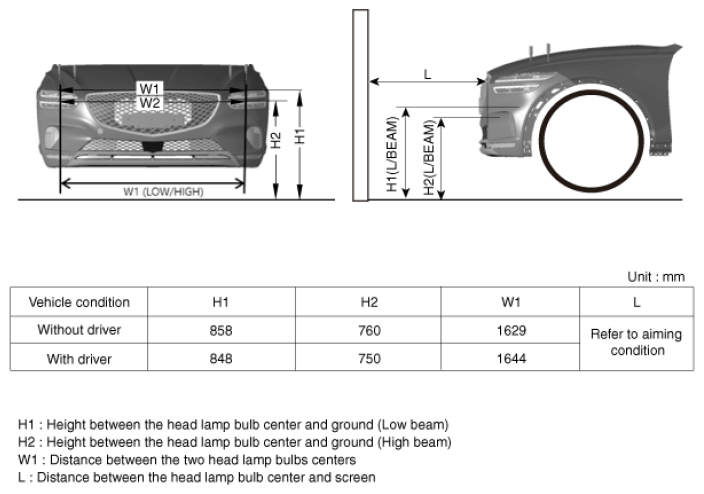

G16856182Courtesy of HYUNDAI MOTOR AMERICA
  1. VOR Type (Visually Optically aimed using the Right side of the low beam): Draw a horizontal line at -1.3%(0.74°) from the headlamp ground clearance.
    G16856183Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn on to low beam the check the up-down/left-right aiming position.
  3. Up-down Aiming: Match the cut-off line the -1.3%(0.74°) line on the screen.

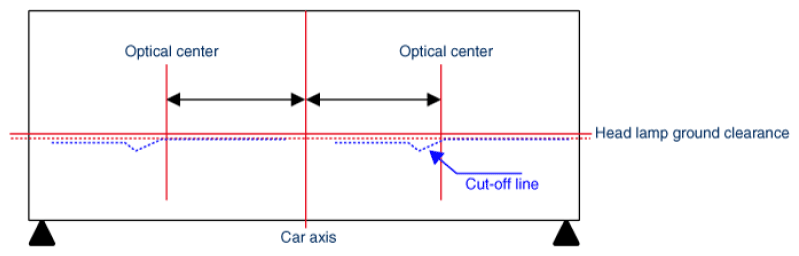

    G16856184Courtesy of HYUNDAI MOTOR AMERICA
  4. Left-Right Aiming: Match the left-right aiming point to the vertical line of optical center on the screen.

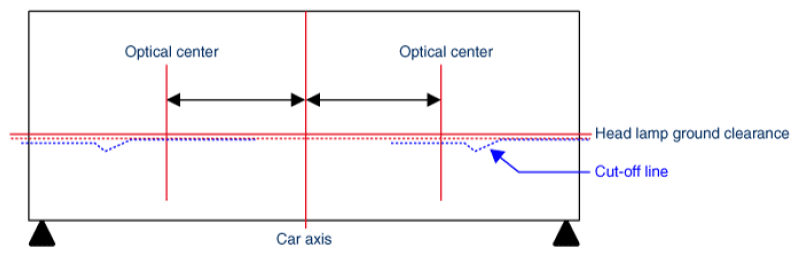

    G16856185Courtesy of HYUNDAI MOTOR AMERICA
