Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper assembly.

    (Refer to Body - "REAR BUMPER ASSEMBLY ")

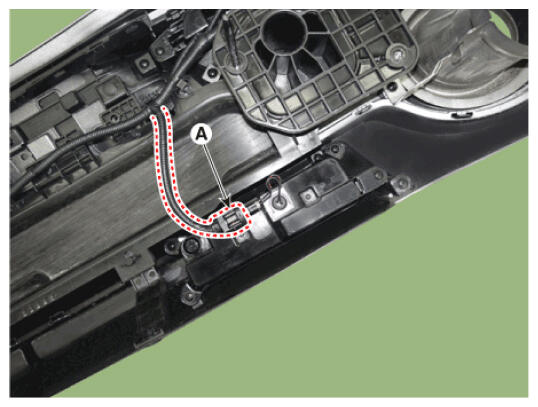

  3. Disconnect the back-up lamp connector (A).
    G16856218Courtesy of HYUNDAI MOTOR AMERICA

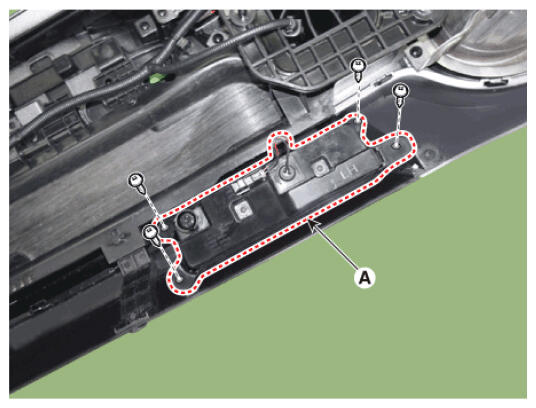

  4. Remove the back-up lamp (A) after loosening mounting screws,
    G16856219Courtesy of HYUNDAI MOTOR AMERICA
