Removal And Installation: Removal

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

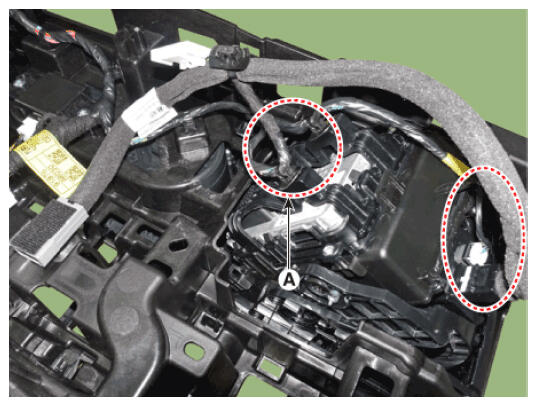

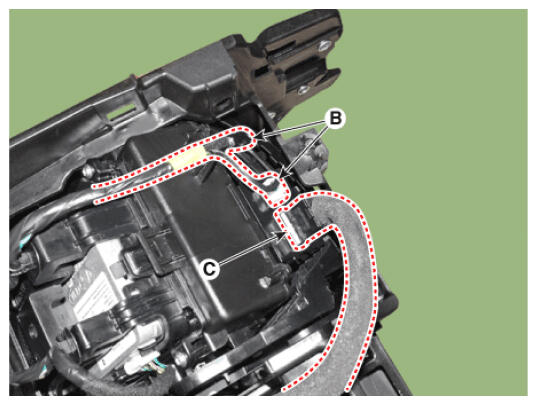

Disconnect the wiring clip (A), console upper tray connector (B) and (C).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

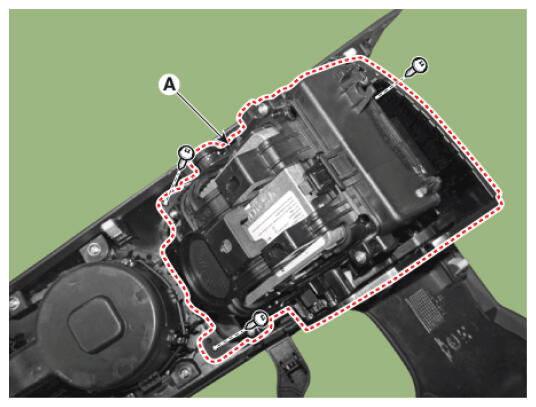

Remove the console upper tray (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

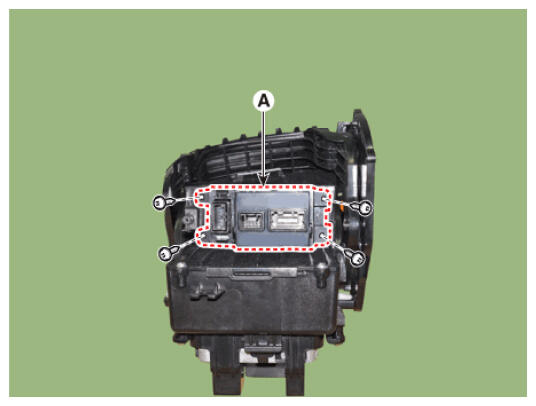

Remove the USB assembly (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the USB jack after pushing hooks of both side.
