Removal And Installation: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")

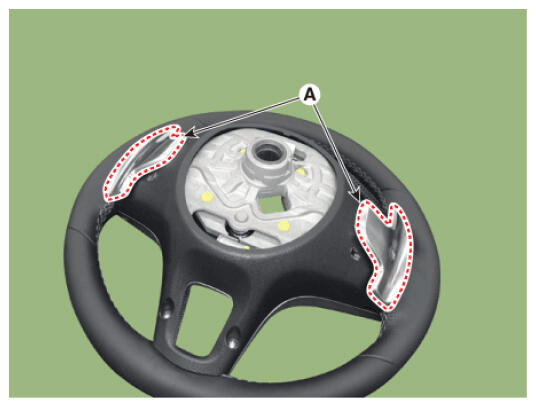

Remove puddle shift switch (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

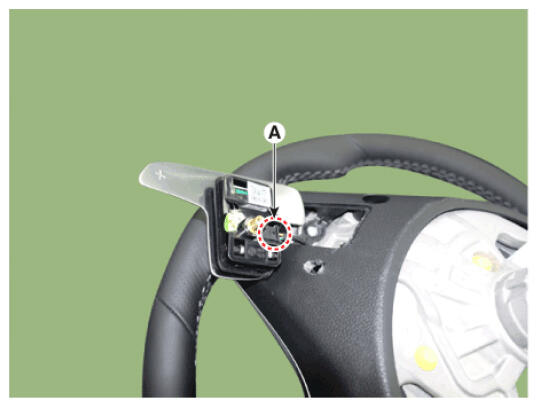

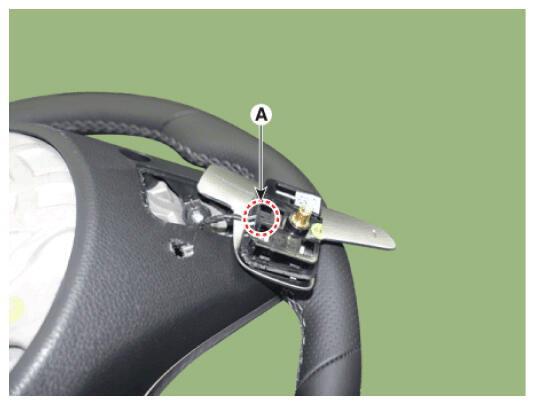

Disconnect puddle shift switch connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

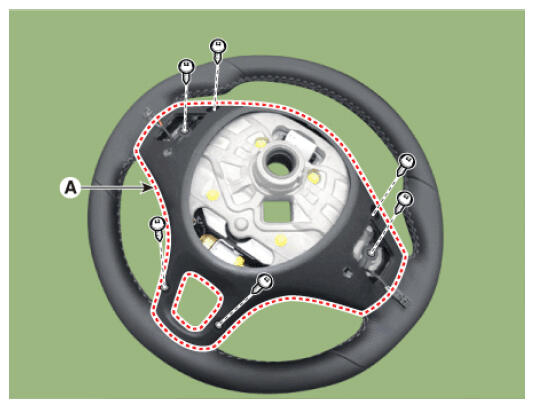

Remove the steering lower cover (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

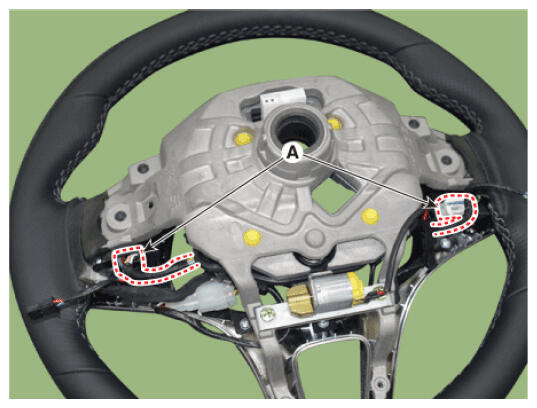

Disconnect steering wheel switch connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

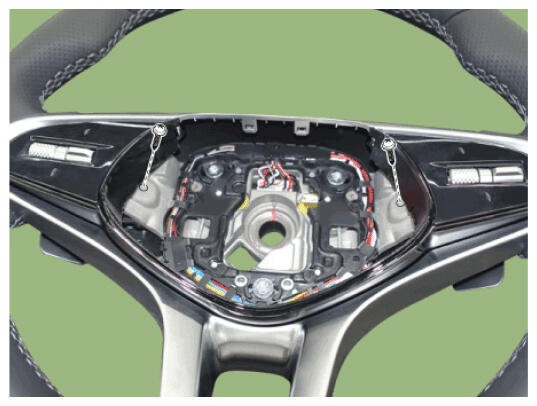

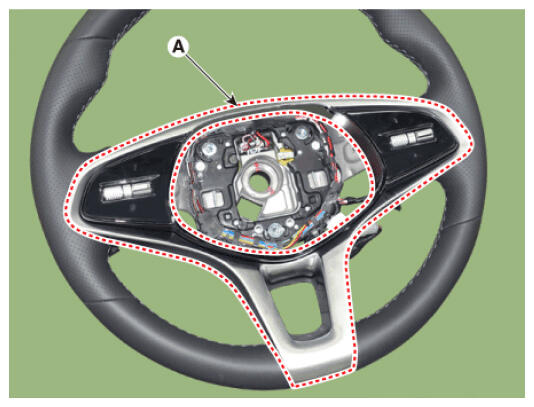

Remove the steering wheel switch (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA
