Tweeter Speaker

  1. Remove the front/rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

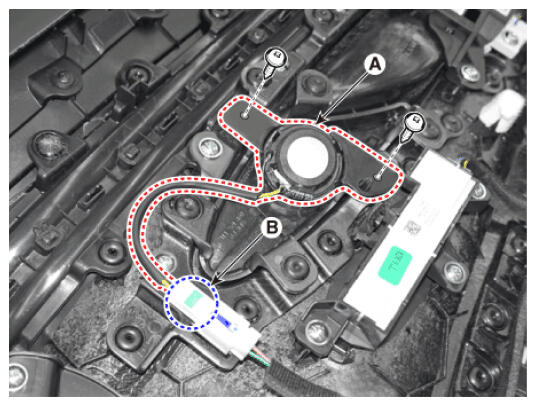

  2. Disconnect the speaker connector (B) and then remove the tweeter speaker (A).
G16855715Courtesy of HYUNDAI MOTOR AMERICA
