Sub Woofer Speaker

  1. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  2. Remove the floor carpet.

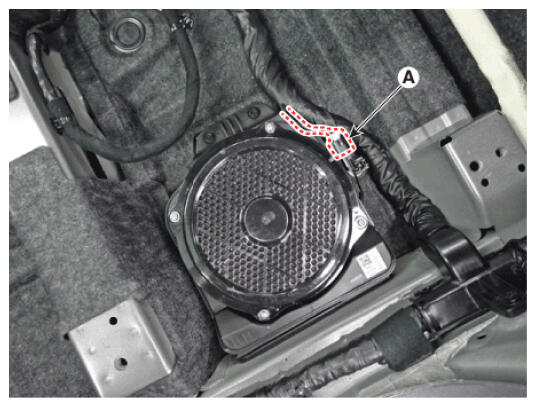

  3. Disconnect the sub woofer speaker connector (A).
    G16855716Courtesy of HYUNDAI MOTOR AMERICA

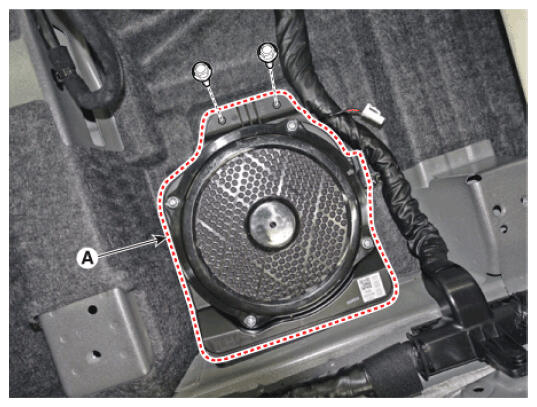

  4. Remove the sub woofer speaker (A) after loosening mounting bolts.
    G16855717Courtesy of HYUNDAI MOTOR AMERICA
