Front Center Speaker

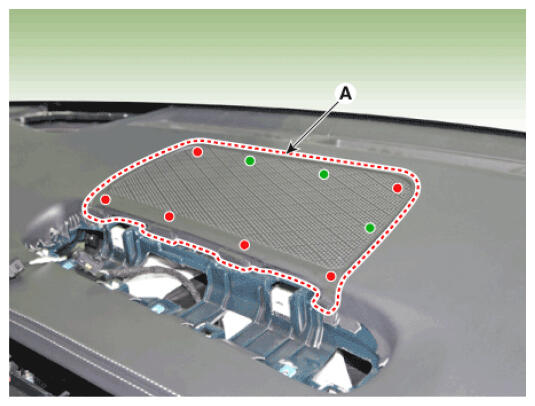

  1. Remove the crash pad upper garnish (A).
    G16855711Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855712Courtesy of HYUNDAI MOTOR AMERICA

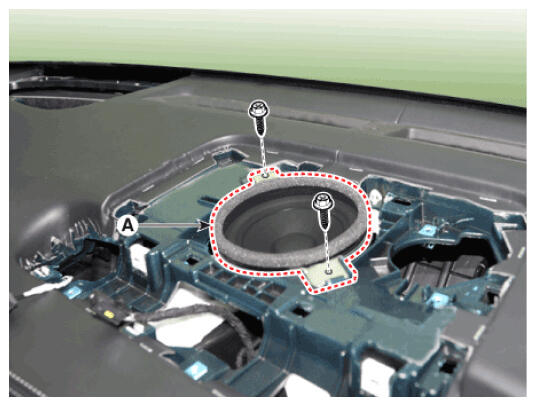

  2. Remove the center speaker (A) after loosening mounting screws.
    G16855713Courtesy of HYUNDAI MOTOR AMERICA

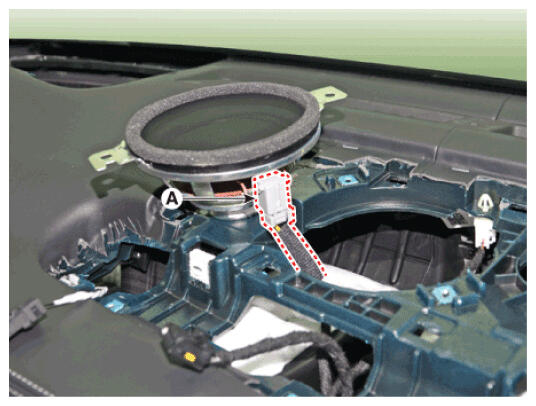

  3. Disconnect the speaker connector (A) and then remove the center speaker.
    G16855714Courtesy of HYUNDAI MOTOR AMERICA
