Integrated Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

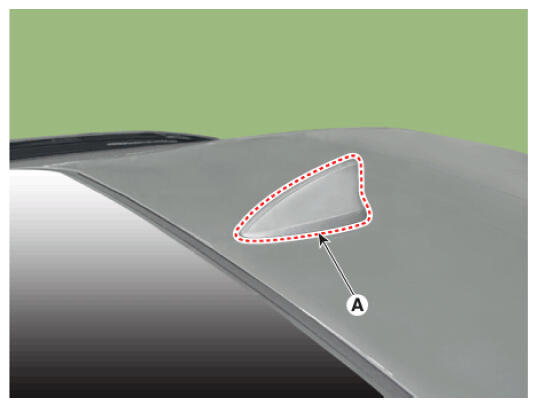

  3. Remove the antenna (A) after loosening mounting nut.
G16855719Courtesy of HYUNDAI MOTOR AMERICA
