Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.

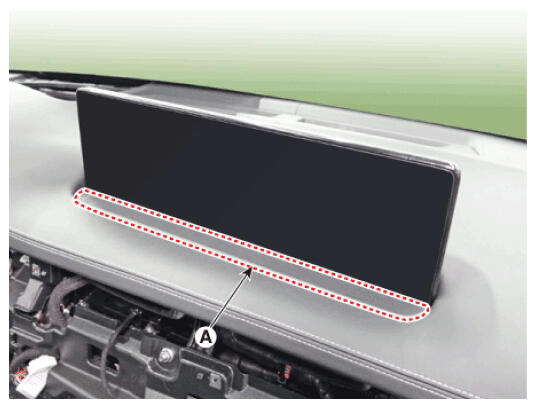

  2. Remove the crash pad upper garnish (A).
    G16855738Courtesy of HYUNDAI MOTOR AMERICA

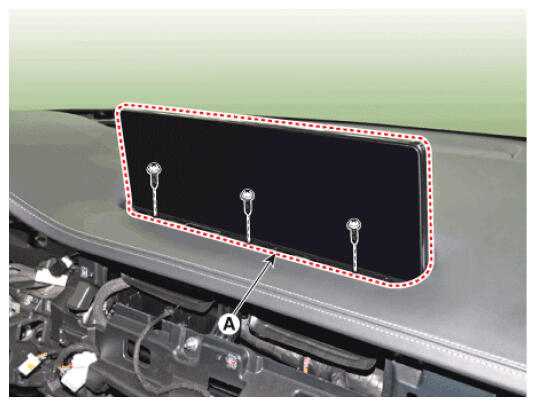

  3. Remove the front monitor (A) after loosening mounting screws.
    G16855739Courtesy of HYUNDAI MOTOR AMERICA

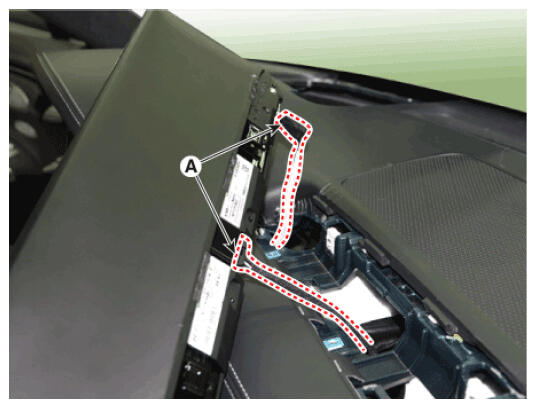

  4. Disconnect the monitor connector (A) and then remove the front monitor.
    G16855740Courtesy of HYUNDAI MOTOR AMERICA
