Removal And Installation: Removal

Disconnect the negative (-) battery terminal.
Remove the luggage side trim [RH].
(Refer to Body - "LUGGAGE SIDE TRIM ")

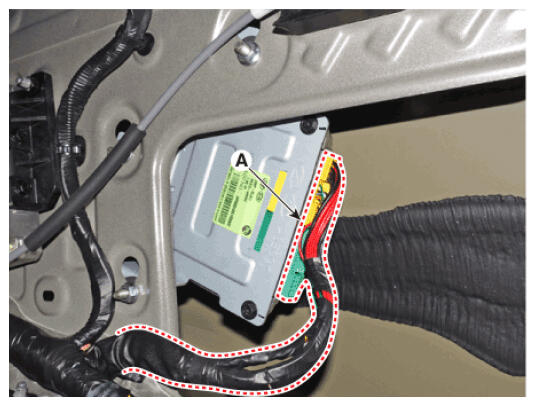

disconnecting amplifier connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

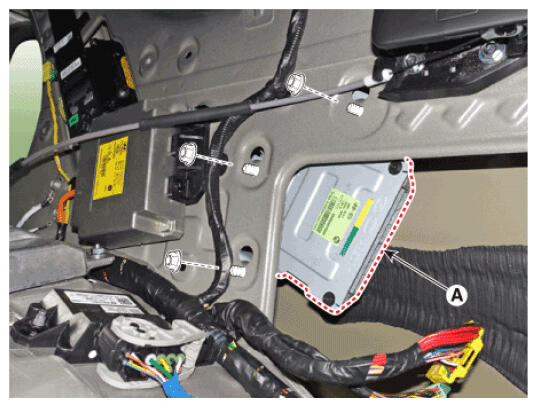

Remove the external amplifier (A) after loosening mounting nuts.

Courtesy of HYUNDAI MOTOR AMERICA
