Removal And Installation: Removal
- Disconnect the negative (-) battery terminal.
- Remove the floor console armrest.
(Refer to Body - "CONSOLE ARMREST ")
- Remove the console mood lamp.
(Refer to Body Electrical System - "MOOD LAMP ")
- Loosen the mounting screws and remove the floor console storage box bracket (A).
- Remove the storage box (A).
- Disconnect the drive mode switch connector (A), AVN keyboard connector (B) and SBW connector (C).
- Remove the floor console under cover (A).

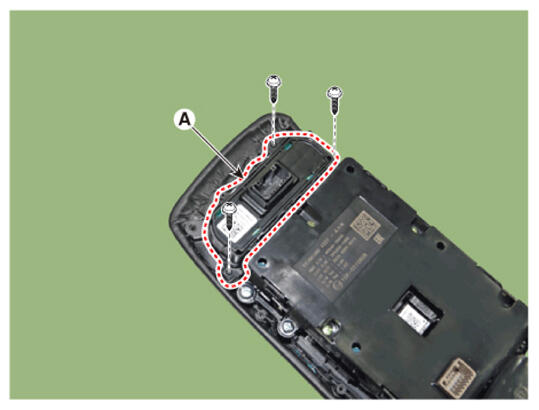

- Loosen the mounting screws and remove the drive mode switch (A).
