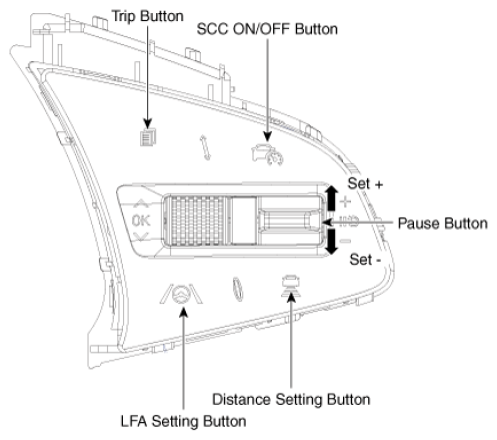

Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	B+
	2	Illumination (+)_Input
	3	Shift up switch_Input
	4	Shift down switch_Input
	5	Audio switch 1 (+)_Input
	6	Audio switch 2 (+)_Input
	7	B-CAN (High)
	8	B-CAN (Low)
	9	Encoder Ch1 IN
	10	Encoder_Ch2_IN
	11	Ground
	12	Ground_OUT
