Front Radar: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

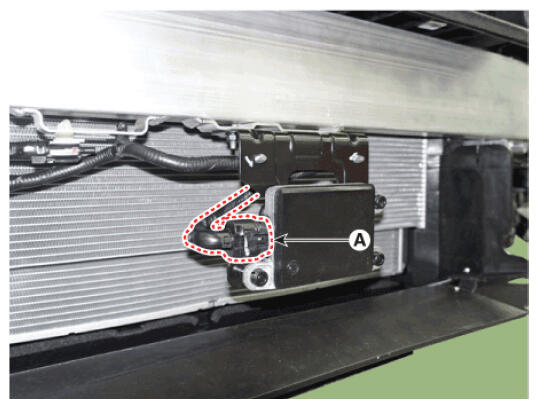

- Disconnect the front radar connector (A).

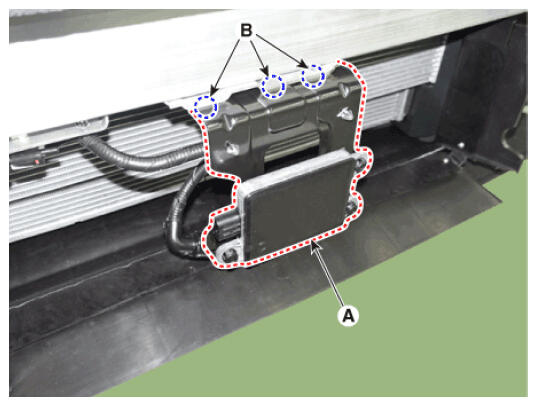

- Loosen the mounting nuts (B) and remove the front radar (A).
