Connector And Terminal Information

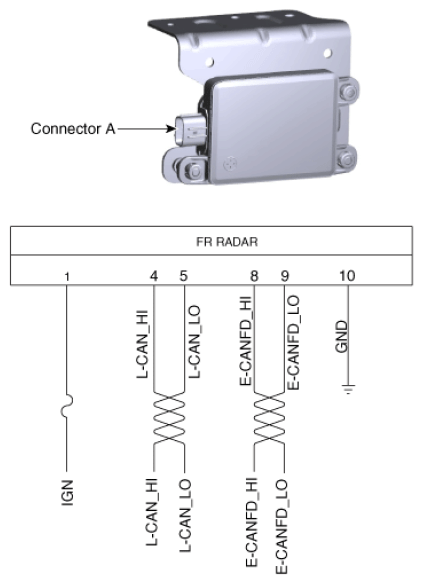

G16856650Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin NO Description
G16856651Courtesy of HYUNDAI MOTOR AMERICA
 1 IGN
2 -
3 -
4 L-CANFD1_High or A-CANFD_High
5 L-CANFD1_Lowor A-CANFD_Low
6 -
7 -
8 E-CANFD_High
9 E-CANFD_Low
10 Ground
