Front Seat Heater Switch

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the steering column shroud upper panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

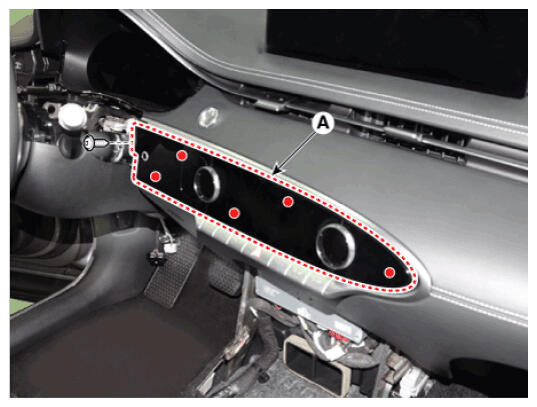

Remove the heater & A/C control unit (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the heater & A/C control unit connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
