Home >> Genesis >> 2024 >> GV70 2.5T >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Seat Electrical >> Lumber Support System >> Removal And Installation >> Removal >> Without Ergo Motion Seat

Without Ergo Motion Seat

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

  3. Remove the air duct.

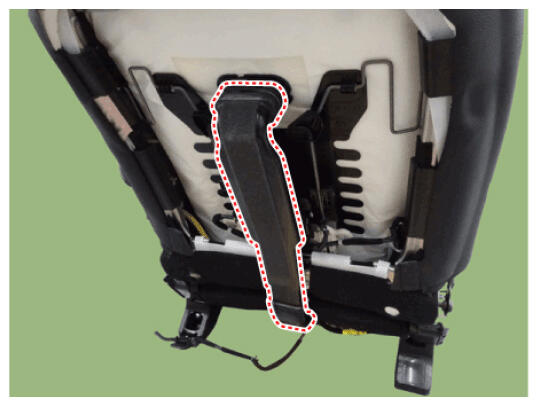

    G16855876Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the lumber support assembly (C) after removing the rod (A), rod (D) and mounting fastener (B).

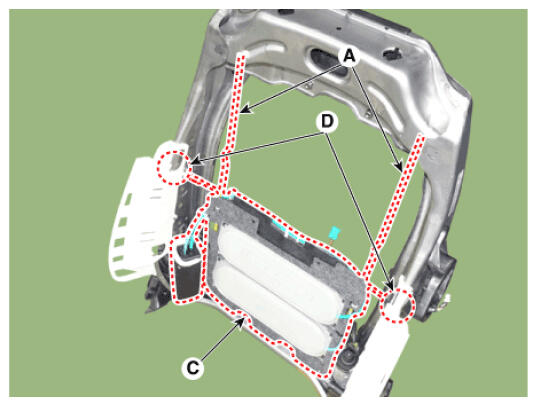

    G16855877Courtesy of HYUNDAI MOTOR AMERICA

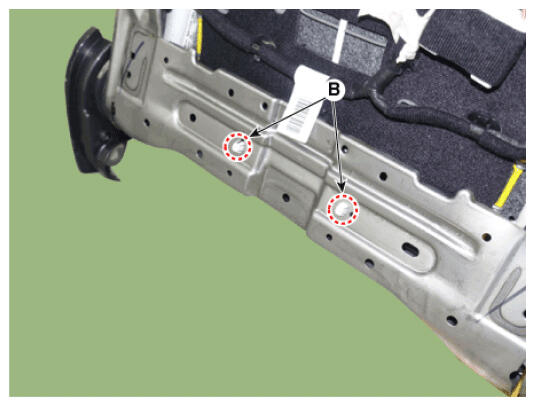

    G16855878Courtesy of HYUNDAI MOTOR AMERICA
