With Ergo Motion Seat
- Disconnect the negative (-) battery terminal.
- Remove the front seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")
- Remove the front seat cushion cover.
(Refer to Body - "FRONT SEAT CUSHION COVER ")
- Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

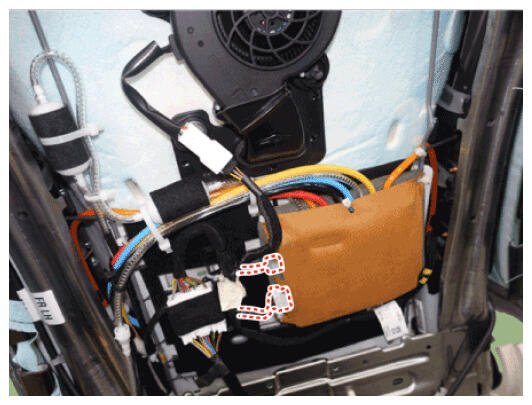

- Disconnect lumber support & ergo motion seat unit connectors.

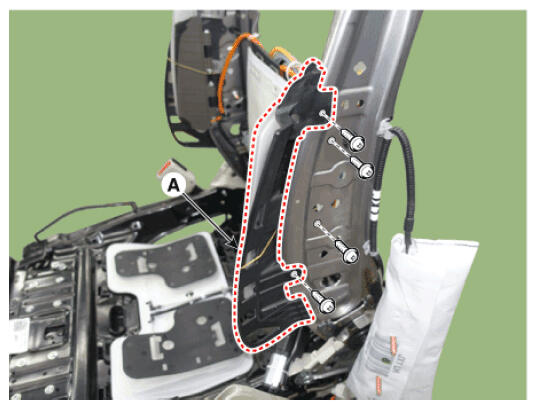

- Remove the side airbag (A) after loosening mounting nuts.
- Remove the center airbag (A) after loosening mounting nuts.

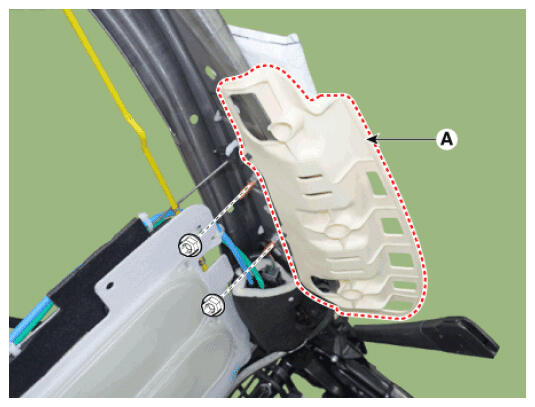

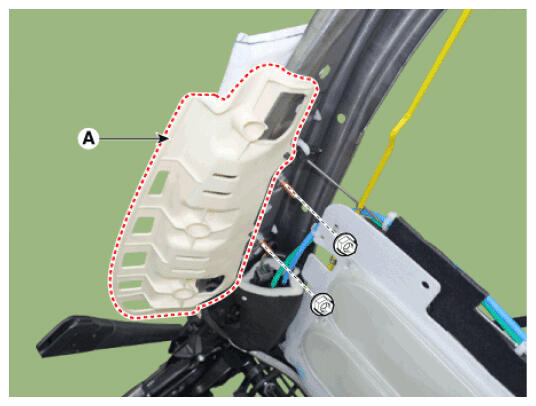

- Remove the LH/RH wind bag (A) after loosening mounting screws.

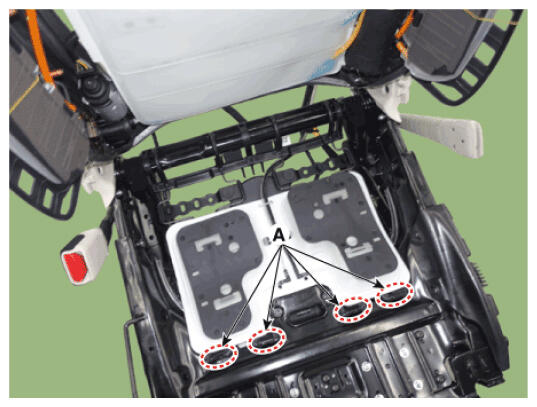

- Remove the wind bag after removing mounting clip (A),

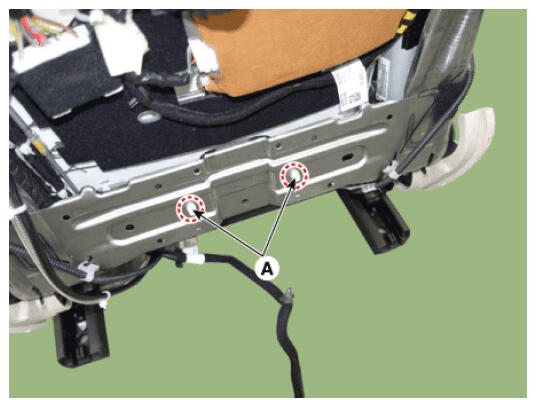

- Remove the fastener (A).

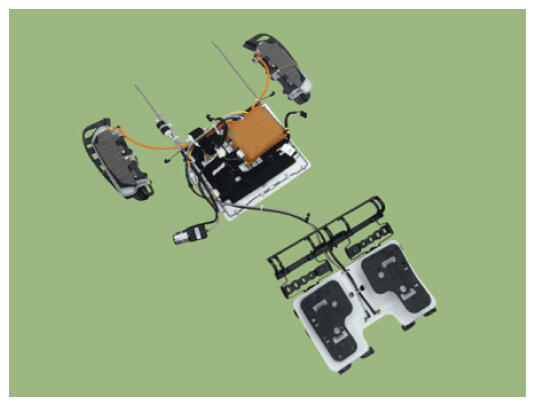

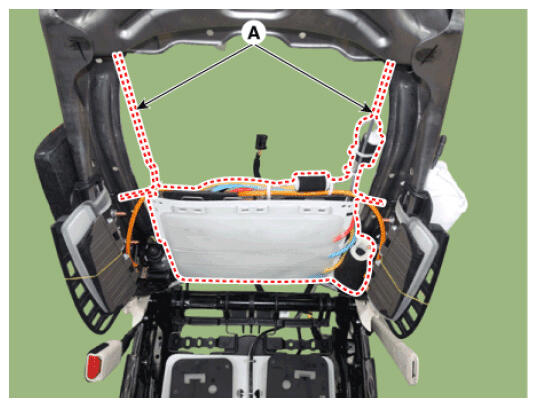

- Separate the rod (A) and then remove the lumber support assembly & ergo motion windbag.
